MIC 24-6 Rotary Type Automatic oil filling Machine (4000-8000CPH)
Company Introduction
At Jiangsu Mic Machinery, we specialize in delivering cutting-edge machinery solutions to the food, beverage, and packaging industries. Our machines are designed with precision engineering and a commitment to quality, ensuring optimal performance and reliability. The MIC 24-6 Rotary Type automatic oil filling machine is a testament to our expertise, offering high-speed, accurate filling solutions for a variety of oils. Whether you’re packaging cooking oil or other edible oils, this machine ensures consistency, efficiency, and quality.
|
|

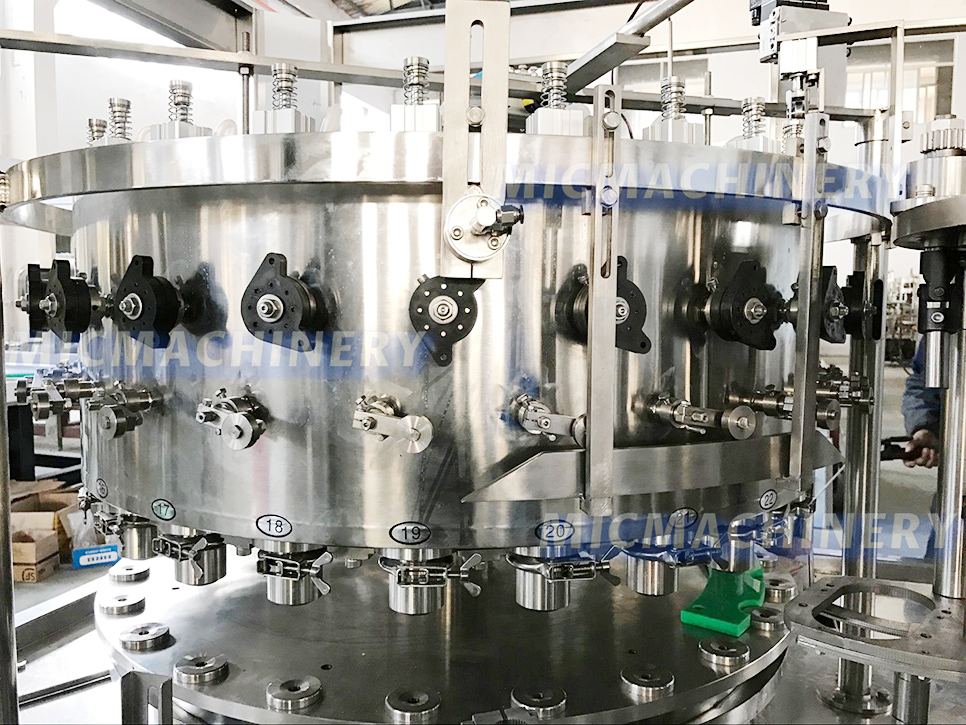

Volumetric type quantitative filling system The volumetric type quantitative filling system for oil can filling uses a non-contact precision method. Oil flows into the measuring cup through a control valve according to the preset volume, while cans are guided into position by the conveyor belt, screw, and star wheel. Once the exact amount is reached, the control valve closes automatically under time control, ensuring consistent measurement. To prevent dripping, a cylinder blows any residual oil from the valve outlet into the cans. After filling is complete, the cans are transferred to the seaming unit for secure closure. |
|

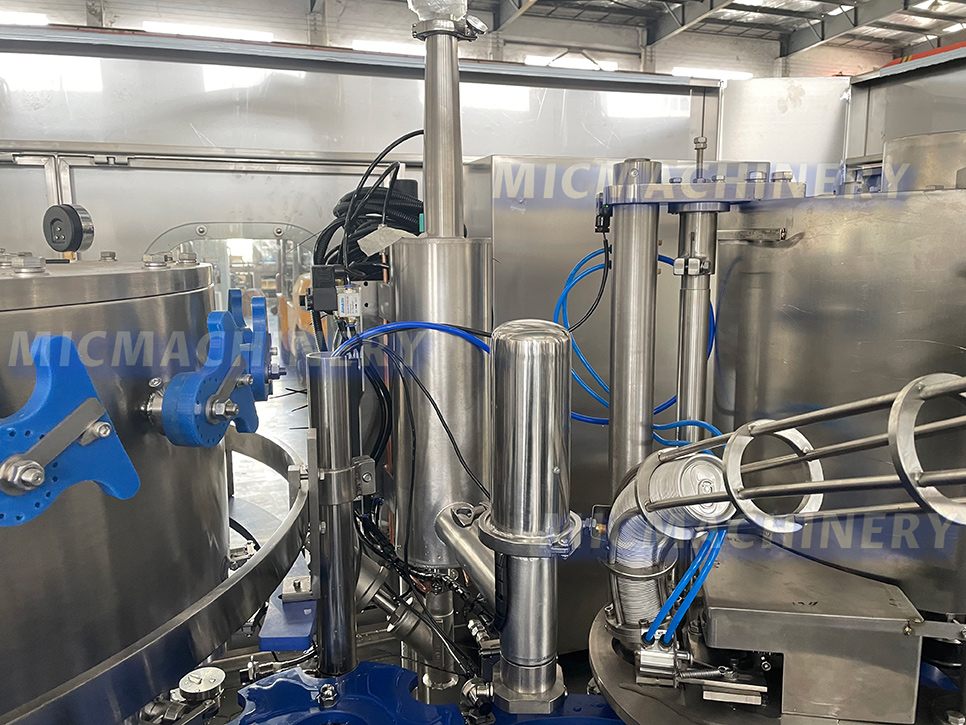

Liquid nitrogen doser
In order to extend the shelf life and freshness of the oil, we will suggest our customer to add this liquid nitrogen doser to work with filling machine.
|
 |
|
|

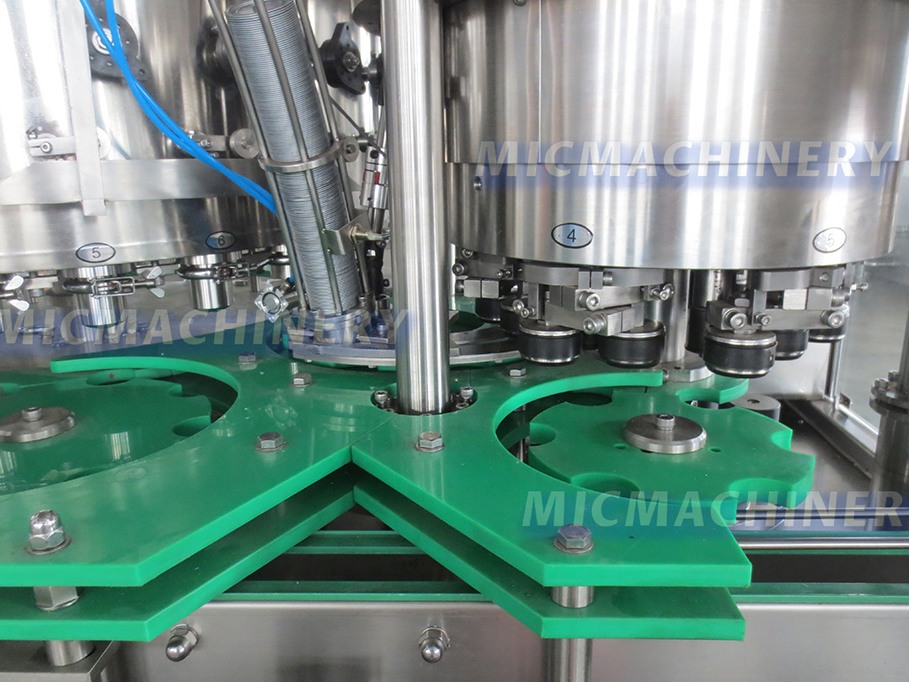

Aluminum lid seaming system In the aluminum lid seaming system for oil can filling, the motor drives the main shaft through the transmission unit, enabling the rotary table to turn. The central gear remains fixed, while the rotary capping heads rotate via their gear shafts. During the sealing process, lids are fed through the automatic lid chute and positioned by the guide rail—ensuring “no can, no lid.” As the capping head descends under the action of the cam, it simultaneously rotates and presses the lid to achieve a secure seam. Finally, the sealed cans are guided out smoothly by the discharge wheel. |
Working Principle of the Oil Filling Machine
The MIC 24-6 Rotary Type automatic oil filling machine is built around an advanced rotary filling system that ensures efficient and precise operation.
1）Bottle Positioning and Feeding
The process begins as empty bottles are fed into the rotary platform. The machine’s automated mechanism ensures precise positioning under each filling nozzle for consistent operation.
2）Volumetric Filling System
Utilizing a high-precision volumetric filling system, the machine dispenses the exact amount of oil into each container. This system accommodates various oil types, such as cooking oil, ensuring accuracy and minimal wastage.
3）Automated Capping and Output
Once filled, the bottles move seamlessly to the capping station, where lids are secured automatically. The filled and sealed bottles are then conveyed out, ready for further packaging or distribution.
Functions of the Oil Filling Machine
The MIC 24-6 Rotary Type machine is designed to simplify and enhance the oil packaging process. Key functions include:
High-Speed Filling: Capable of handling up to 8000 bottles per hour, this machine meets the demands of large-scale production facilities.
Adjustable Filling Volumes: It supports a wide range of bottle sizes and shapes, making it ideal for diverse product lines, including edible oil packaging machines.
User-Friendly Operation: The intuitive control panel allows operators to adjust settings easily and monitor the process in real time.
Precision Control: Integrated sensors and control systems ensure that every bottle is filled accurately, preventing overfilling or underfilling.
Advantages of the Oil Filling Machine
The MIC 24-6 Rotary Type automatic oil filling machine delivers unparalleled benefits for manufacturers:
1、Versatility
This machine handles a variety of oils, from cooking oil to premium edible oils, adapting to different viscosities and packaging needs.
2、Efficiency
Its rotary design ensures a continuous filling process, maximizing productivity and minimizing downtime.
3、Precision and Consistency
The volumetric filling system guarantees that every bottle receives the exact amount of oil, improving product quality and customer satisfaction.
4、Durability and Hygiene
Constructed with high-grade stainless steel, the machine is resistant to corrosion and easy to clean, meeting food safety standards.
5、Cost-Effectiveness
The high-speed operation and minimal product wastage result in lower production costs, making it a valuable investment for manufacturers.
6、Seamless Integration
The MIC 24-6 is designed for compatibility with existing production lines, offering easy installation and reduced setup time.
At Jiangsu Mic Machinery, we take pride in providing solutions that empower businesses to thrive. The MIC 24-6 Rotary Type cooking oil filling machine embodies our commitment to innovation, precisi
|
Power |
4Kw |
|
Filling heads |
24piece |
|
Sealing heads |
6piece |
|
Filling volume range |
0.1-1L |
|
Production capacity |
4000-8000CPH based on 330ml |
|
Filling temperature |
Room temperature |
|
Can diameter range |
Ф40-90MM |
|
Can height |
92-168MM |
|
Air pressure |
0.6-0.8Mpa |
|
Air consumption |
0.8-1.0m³/min |
|
Dimension |
2600×1400×2500mmm |
|
Weight |
3000Kg |
|
Name |
Brand |
|
Touch screen |
Siemens (Germany) |
|
Buttons |
Schneider (France) |
|
AC Contactor |
Schneider (France) |
|
PLC |
Mitsubishi (Japan) / Siemens (Germany) |
|
Frequency changer |
Schneider (France) |
|
Breaker |
Schneider (France) |
|
Air cylinder |
AirTAC (China) / FESTO (Optional) |
|
Solenoid valve |
AirTAC (China) / FESTO (Optional) |
|
Relay |
Omron (Japan) / Schneider (France) |
|
photoelectric sensor |
Autonics (Korea) / Omron (Optional) |
|
Proximity switch |
Autonics / Omron (Optional) |
