Advanced Sauce Can Filling & Sealing Machines
Jiangsu Mic Machinery specializes in providing complete sauce packaging solutions with high-precision sauce can filling sealing machine systems. Whether you produce thick tomato paste, spicy chili sauce, or vegetable-based condiments, our machines offer reliable performance, seamless integration, and long-term durability.
🏭 What Is a Sauce Can Filling Sealing Machine?
 |
A sauce can filling sealing machine is an automatic solution that combines the accurate dispensing of sauce into cans with immediate hermetic sealing. This ensures both product freshness and production efficiency, making it ideal for food manufacturers targeting retail or bulk packaging markets.
At Jiangsu Mic Machinery, we offer models that accommodate a range of can sizes and sauce types—from chunky products to smooth pastes.
|
⚙️ Core Features of Our Sauce Canning Equipment
|
Our equipment is engineered to handle the complexity of
thick and particulate-filled sauces. Each sauce can filling
machine is built for:
• High-viscosity sauce filling
• Sanitary stainless steel contact parts
• Heated and agitated hoppers to maintain consistency
• Servo-controlled piston or volumetric filling
• Seamless transition from filling to sealing
By combining functionality with flexibility, our sauce canning machine line delivers performance across various production
scales.
|
 |
🔧 Integrated Filling, Sealing & Seaming
 |

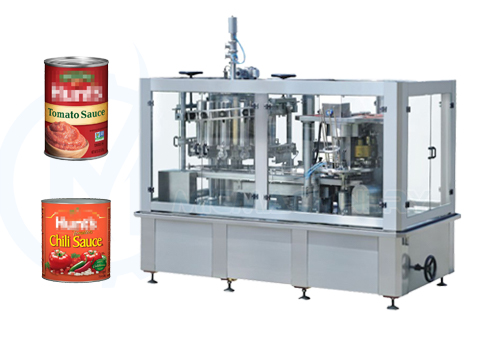

Our complete systems are more than just fillers—they’re fully integrated machines for commercial production. The sauce can filling sealing machine handles two critical steps in one compact unit:

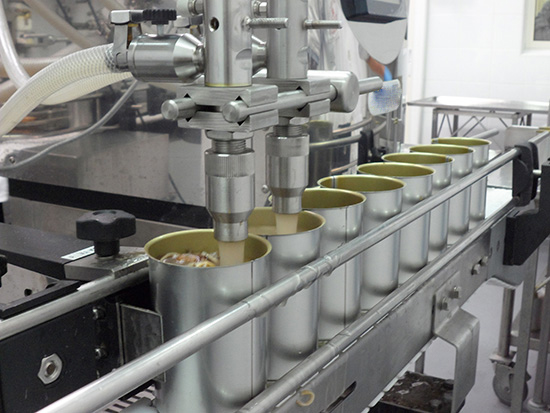

1. Precise Filling: Ensures every can is uniformly filled without overflow or underfilling.
2. Secure Sealing: Lids are automatically placed and sealed using a mechanical seaming process.
Looking for a high-output solution? Our sauce can filling seaming machine supports speeds of up to 60 cans per minute, with consistent seam integrity even in demanding environments.
|
📐 Sauce Canning Machine Technical Specifications
Sauce Can Filling Seaming Machine:
| Model |
MIC-1204 |
MIC-1804 |
MIC-2406 |
MIC-3608 |
MIC-0604 |
MIC-0904 |
| Number of Capping Heads |
4 |
4 |
6 |
8 |
4 |
4 |
| Number of Filling Heads |
12 |
18 |
24 |
36 |
6 |
9 |
| Cans Height |
39-160mm |
39-160mm |
39-160mm |
39-160mm |
120-265mm |
120-265mm |
| Cans Diameter |
Ф52-99mm |
Ф52-99mm |
Ф52-99mm |
Ф52-73mm |
Ф153mm |
Ф153mm |
| Filling Capability |
70-850g |
70-850g |
70-850g |
70-450g |
2.2-4.5KG |
2.2-4.5KG |
| Production Capacity |
80-200 cans/min |
80-250 cans/min |
80-400 cans/min |
80-600 cans/min |
20-60 cans/min |
40-90 cans/min |
| Power |
5.5KW |
5.5KW |
7.5KW |
11KW |
5.5KW |
7.5KW |
| Weight |
4000KG |
4500KG |
5800KG |
6880KG |
4000KG |
5500KG |
| Dimensions (mm) |
2800*1600*1900 |
3000*1800*1900 |
3214*2104*1900 |
3650*2150*2200 |
2700*1700*1900 |
3200*1800*1900 |
🍅 Applications in the Food Industry
|
Our sauce canning machine technology is trusted by global food processors in applications including:
• Tomato paste & ketchup
• Spicy chili sauce & curry paste
• Barbecue & soy-based sauces
• Ready-to-eat gravies or condiments
• Vegetable or meat-based canning lines
The design of each sauce can filling machine ensures hygienic operation, reduced downtime, and simplified cleaning.
|
 |
🔄 Customization & Compatibility
 |
Jiangsu Mic Machinery offers flexible solutions to match your operational needs:
• Available for tin cans, aluminum cans, and composite containers
• Multiple filling heads for higher productivity
• Optional nitrogen flushing to extend product shelf life
• Modular design for easy integration with labeling or sterilization systems
Our sauce can filling seaming machine models are available in linear or rotary configurations, depending on your space and speed requirements.
|
🧠 Why Choose Jiangsu Mic Machinery?
With years of expertise and hundreds of successful installations, we are a trusted global sauce can filling sealing machine manufacturer. We provide:
• High-performance machines at factory-direct prices
• On-site commissioning, training, and support
• ISO and CE-certified equipment
• Quick lead times and custom engineering services
When you choose Jiangsu Mic Machinery, you're investing in quality, efficiency, and long-term reliability.
📩 Request a Quote Today
Upgrade your sauce production line with a fully automatic sauce canning machine, high-precision sauce can filling machine, or compact sauce can filling sealing machine. Need additional functions like seaming? We also provide integrated sauce can filling seaming machine systems.
📧 Email: lewis@micmachinery.com
🌐 Website: www.micbeveragemachine.com
📞 WhatsApp/Phone: 0086-13961211672
Let us know your product type, output needs, and packaging style—we’ll recommend the ideal solution for your operation.
