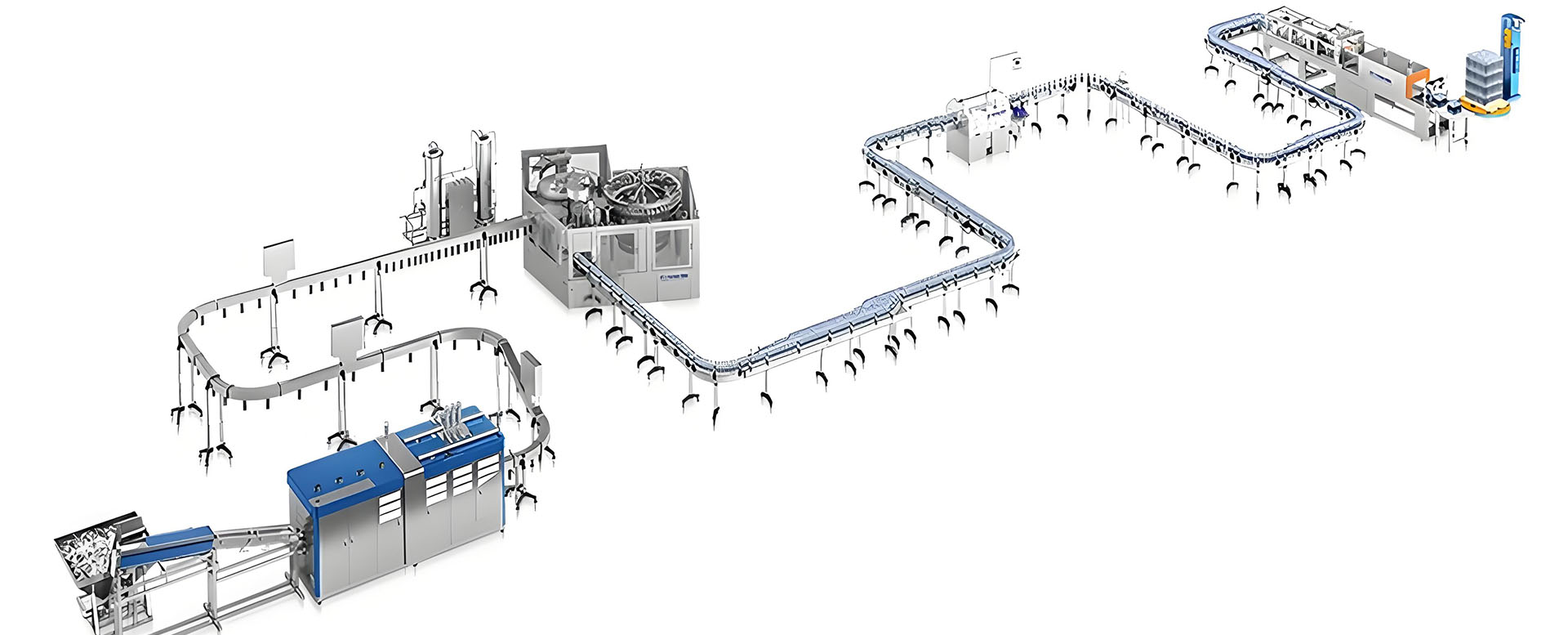

PET bottling line

🏭 Complete Plastic Bottle Production Solutions

Jiangsu Mic Machinery provides more than just bottling machines. We also integrate full plastic bottle production line capabilities into your factory layout, including automatic preform loading, stretch blow molding, and bottle cooling systems. This ensures a seamless transition from raw material to finished, labeled beverage bottles.

Model

8-8-3

14-12-5

18-18-6

18-18-6

Application

Juice, tea, pure water, mineral water, energy drinks, coffee and etc.

Carbonated Beverage, Gas Drinks, Sparking Water And So On

Filling Way

Gravity Filling

Packing Type

PET/Plastic bottle

Production Capacity

2000-2500BPH

3000-5000BPH

5000-8000BPH

2000-4000 Bottles/h (500ML)

Powder

1.2KW

1.5KW

2.2KW

2.2KW

Weight

1500KG

2000KG

4000KG

3500KG

Overall Dimensions(mm)

2260*1600*2600

2250*1650*2650

2850*2150*2700

2500mm*1900mm*2300mm

Plastic Bottle Blowing Machine

• Blow the preform into the mold using high-pressure air for molding
• Equipped with a stretching rod for longitudinal stretching, improving the strength of the bottle body
• Automatic embryo delivery and bottle dispensing system for continuous production
• Adopting PLC control system to precisely control the heating and blowing process

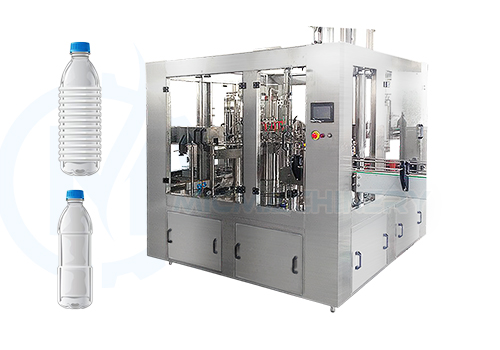

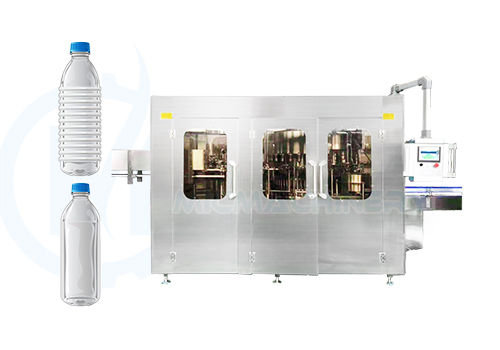

Pet Bottle Filling Machine

• Integrated Bottle Rinsing and Capping System，Combines multiple steps into one compact machine to save space and labor.
• Sanitary Stainless Steel Construction
• Rotary Filling Structure
• Allows continuous high-speed filling of PET bottles with precise volume control.

Warm Irrigation Machine

• Gently sprays warm water over filled bottles or cans to equalize internal pressure
• Prevents condensation on cold-filled containers before labeling
• Uses circulating warm water system with temperature control
• Equipped with adjustable spray nozzles for full surface coverage

Air Knife Dryer

• High speed fan: this equipment is equiped with a power, high strength roots blower, can produce a certain air knife effect.
• High quality materials: the whole machine except accessories are made of stainless steel.

Labeling Machine

• Labeling synchronized with conveyor speed for consistent placement
• Controlled by PLC and touchscreen for easy operation and quick adjustments
• Equipped with fault detection and auto-stop for safety and efficiency
• Compatible with flat, round, oval, and irregular containers

Laser Batch Coding Machine

• Uses a focused laser beam to etch or mark codes directly onto product surfaces
• No ink or consumables required, ensuring clean and permanent coding
• Compatible with various packaging lines: bottles, pouches, cartons, etc.
• Supports dynamic data input for variable codes like batch numbers and dates

Wrap packing machine/Carton packing machine

• Products are pushed or dropped into the open carton by mechanical arms or pushers
• Equipped with sensors to detect product presence and carton position
• Synchronizes with upstream filling or labeling equipment
• Adjustable guides accommodate different carton sizes

Palletizer

• Stacks cartons, bags, or containers layer by layer onto pallets
• Uses robotic arms or layer-forming conveyors for positioning
• Includes pallet magazine and automatic pallet feeding system
• Equipped with sensors for precise alignment and layer control

Pallet wrapping machine

• Film carriage moves vertically to cover the entire height of the load
• Includes photoelectric sensors to detect load height automatically
• Offers options for top-sheet application or corner reinforcement
• Suitable for stabilizing products during transport and storage
