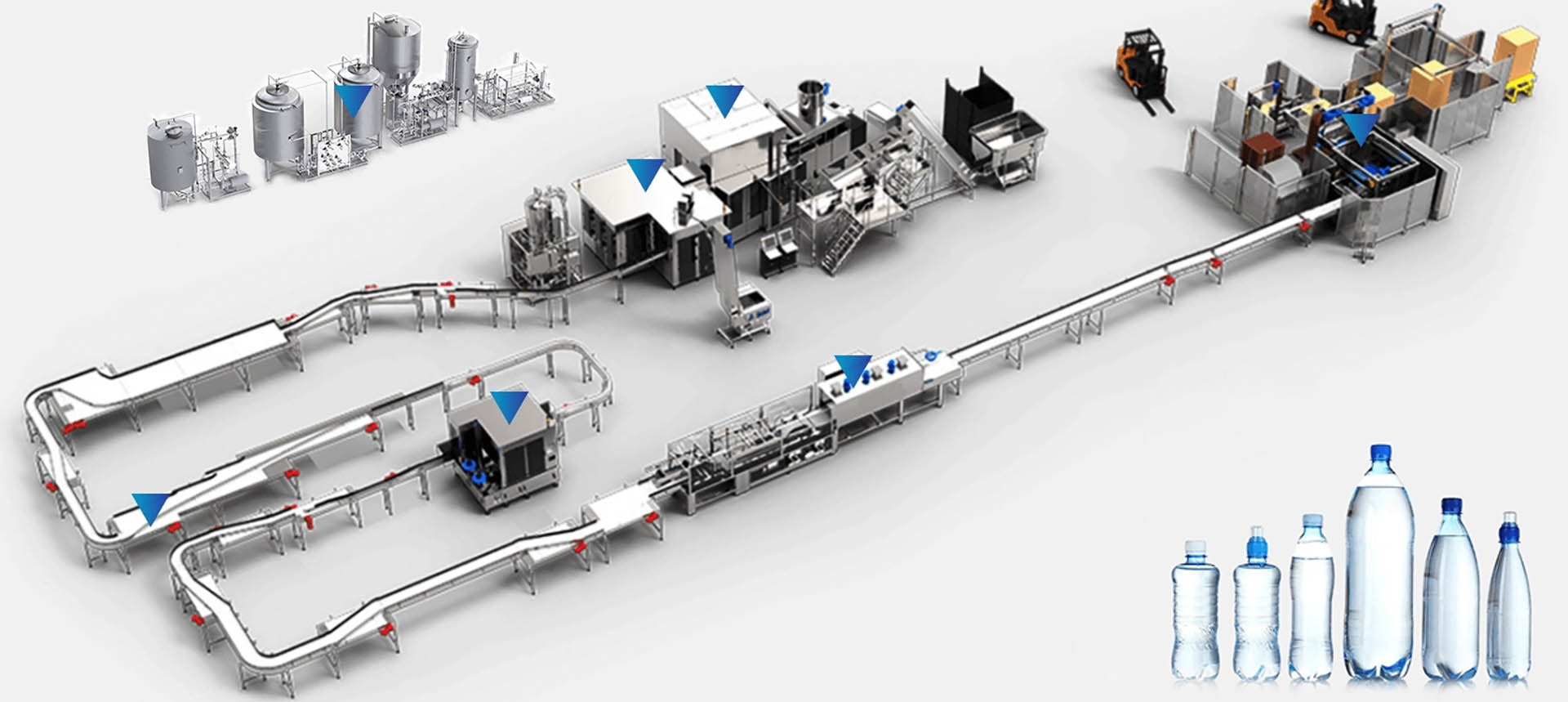

Water filling line

🧃 Key Features of Our Filling Systems

• Modular Design: Configure your water filling production line to fit your space and output requirements.

• Hygienic Construction: All parts in contact with liquid are made from food-grade SUS304/316 stainless steel.

• High-Speed Precision: Capable of handling up to 24,000 bottles per hour depending on the model.

• Smart Automation: PLC and touchscreen controls make it easy to monitor and adjust performance in real time.

• Multiple Bottle Sizes: Our machines handle everything from 200ml to 5L bottles, making them ideal for plastic water bottle production line applications.

Model

8-8-3

14-12-5

18-18-6

Application

Juice, tea, pure water, mineral water, energy drinks, coffee and etc.

Filling Way

Gravity Filling

Packing Type

PET/Plastic bottle

Production Capacity

2000-2500BPH

3000-5000BPH

5000-8000BPH

Powder

1.2KW

1.5KW

2.2KW

Weight

1500KG

2000KG

4000KG

Overall Dimensions(mm)

2260*1600*2600

2250*1650*2650

2850*2150*2700

Water Treatment Equipment

• Removes impurities, bacteria, and heavy metals from raw water
• Includes filtration, reverse osmosis, UV sterilization, and ozone systems
• Designed for use in beverage, food, and pharmaceutical industries
• Ensures stable water quality for production and packaging

Plastic Bottle Blowing Machine

• Blow the preform into the mold using high-pressure air for molding
• Equipped with a stretching rod for longitudinal stretching, improving the strength of the bottle body
• Automatic embryo delivery and bottle dispensing system for continuous production
• Adopting PLC control system to precisely control the heating and blowing process

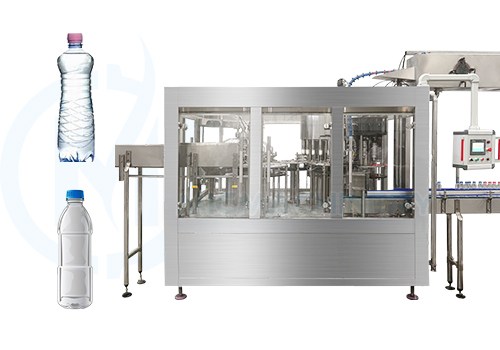

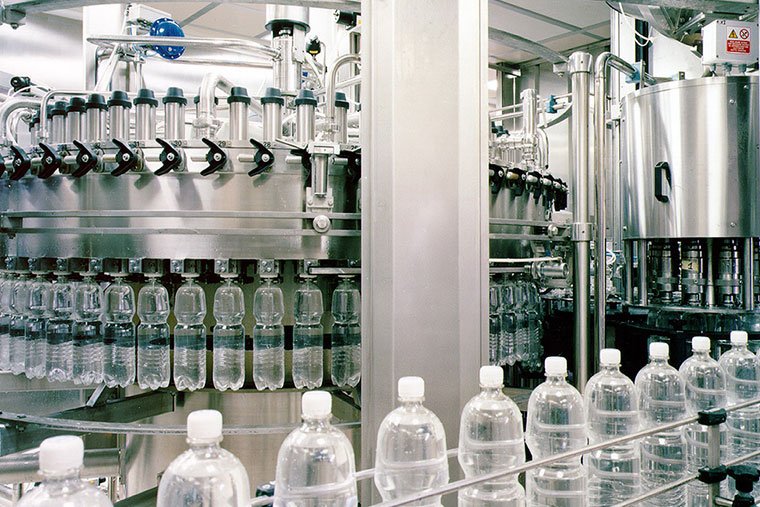

Water Bottle Filling Machine

• Integrates rinsing, filling, and capping into a 3-in-1 rotary structure
• Bottles are held by the neck or base for precise alignment
• Includes CIP system for automated cleaning and sanitation
• Compatible with PET or plastic bottles of various sizes

Air Knife Dryer

• High speed fan: this equipment is equiped with a power, high strength roots blower, can produce a certain air knife effect.
• High quality materials: the whole machine except accessories are made of stainless steel.

Shrink sleeve labeling machine

• Feeds shrink film from a roll and cuts it into individual sleeves
• Applies sleeves over bottles using a servo-controlled mandrel or drop system
• Uses pulling and feeding wheels to maintain label tension and alignment
• Compatible with round, square, and custom-shaped containers

Laser Batch Coding Machine

• Uses a focused laser beam to etch or mark codes directly onto product surfaces
• No ink or consumables required, ensuring clean and permanent coding
• Compatible with various packaging lines: bottles, pouches, cartons, etc.
• Supports dynamic data input for variable codes like batch numbers and dates

Wrap packing machine/Carton packing machine

• Products are pushed or dropped into the open carton by mechanical arms or pushers
• Equipped with sensors to detect product presence and carton position
• Synchronizes with upstream filling or labeling equipment
• Adjustable guides accommodate different carton sizes

Palletizer

• Stacks cartons, bags, or containers layer by layer onto pallets
• Uses robotic arms or layer-forming conveyors for positioning
• Includes pallet magazine and automatic pallet feeding system
• Equipped with sensors for precise alignment and layer control

Pallet wrapping machine

• Film carriage moves vertically to cover the entire height of the load
• Includes photoelectric sensors to detect load height automatically
• Offers options for top-sheet application or corner reinforcement
• Suitable for stabilizing products during transport and storage
