Drink filling line

⚙️ Tailored for Every Drink Type

Our machines are suitable for various formats and product types, making them ideal for applications such as the soft drink production line, carbonated drink production line, and energy drink production line. From PET bottles to aluminum cans, Jiangsu Mic Machinery delivers complete filling, sealing, and labeling systems that keep your production line running smoothly.

Model

MIC12-12-1

MIC18-18-1

MIC18-18-6

MIC24-24-6

MIC24-24-8

MIC32-32-8

MIC Semi Automatic

Application

Beer, Carbonated Beverage, Gas Drinks, Sparking Water And So On

Packing Type

Aluminum Bottle, Metal Bottle, Tin Bottle, PET Bottle, etc

Speed

300-1500BPH

1000-2500BPH

2000-4000BPH

4000BPH

2000-6000BPH

4800-7500BPH

200-800BPH

Filling Arrange

180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)

Power

2.2KW

1.5KW

1.5KW

5.0KW

0.3KW

Size

2.5*1.9*2.3 (M)

2.2*1.8*2.55 (M)

2.5*1.4*2.5 (M)

3.4*2.5*2.3 (M)

2.0*0.7*2.0 (M)

Weight

3500KG

3500KG

4500KG

10000KG

150KG

Model

MIC 12-1

MIC 8-8-3

MIC 14-12-5

MIC 18-18-6

MIC 18-18-6

MIC 24-18-6

MIC Linear

Application

Juice, Cold Coffee, Herbal Tea, Non-carbonated Drinks And So On

Packing Type

Aluminum Bottle, Metal Bottle, Tin Bottle, PET Bottle, etc

Speed

500-2000BPH

2000-2500BPH

3000-5000BPH

8000-15000BPH

8000-10000BPH

10000-13000BPH

1800BPH

Filling Arrange

180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)

Model

MIC 12-1

MIC 18-1

MIC 18-6

MIC 24-6

MIC 32-8

MIC 40-10

MIC 4-4-1

MIC Semi Automatic

Application

Beer, Carbonated Beverage, Gas Drinks, Sparking Water And So On

Packing Type

Aluminum Cans, Metal Cans, Tin Cans, PET Cans, etc

Speed

1000-2000CPH

1000-2500CPH

3000-6000CPH

4000-8000CPH

6000-10000CPH

8000-15000CPH

1000-1500CPH

Filling Arrange

180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)

Power

1.1KW

1.5KW

2.5KW

3.5KW

4.2KW

5.5KW

2.0-3.5KW

Size

1.8*1.3*1.95 (M)

1.9*1.3*1.95 (M)

2.3*1.4*1.9 (M)

2.58*1.7*1.8 (M)

2.8*1.7*1.95 (M)

3.0*1.9*2.1 (M)

2.2*1.15*2.05 (M)

5.75*5.5*4.8 (M)

Weight

1800KG

2100KG

2500KG

3000KG

3800KG

4500KG

550KG

15KG

Model

MIC 12-1

MIC 18-6

MIC 24-6

MIC 32-8

MIC 40-10

Application

Juice, Cold Coffee, Herbal Tea, Non-carbonated Drinks And So On

Packing Type

Aluminum Cans, Tin Cans, PET Cans, etc

Speed

1000-2000CPH

4000-7000CPH

4000-8000CPH

10000CPH

12000CPH

Filling Arrange

130ml,250ml, 330ml, 355ml, 500ml, 120z, 16oz, 1L and so on (0.1-1L)

Powder

1.1KW

2.5KW

3.5KW

4.2KW

5.5KW

Size

1.8*1.3*1.95 (M)

2.3*1.4*1.9 (M)

2.58*1.7*1.8 (M)

2.8*1.7*1.95 (M)

3.0*1.9*2.1 (M)

Weight

1800KG

2500KG

3000KG

3800KG

4500KG

Water Treatment Equipment

• Removes impurities, bacteria, and heavy metals from raw water
• Includes filtration, reverse osmosis, UV sterilization, and ozone systems
• Designed for use in beverage, food, and pharmaceutical industries
• Ensures stable water quality for production and packaging

Carbonated Beverage Pre Processing System

• Mixes water, syrup, and CO₂ in controlled ratios for consistent taste
• Employs a carbonation tank to infuse CO₂ under pressure
• Includes CIP-compatible design for hygiene and easy cleaning
• We can provide the entire blending equipment for Carbonated Beverage Pre Processing System

Pasteurization Machine

• Uses controlled heating and cooling to reduce microbial load in beverages
• Maintains precise temperature and holding time for safety and taste
• Equipped with CIP (Clean-in-Place) system for hygiene
• Supports continuous or batch processing based on production needs

Plastic Bottle Blowing Machine

• Blow the preform into the mold using high-pressure air for molding
• Equipped with a stretching rod for longitudinal stretching, improving the strength of the bottle body
• Automatic embryo delivery and bottle dispensing system for continuous production
• Adopting PLC control system to precisely control the heating and blowing process

Glass Bottle Depalletizer

• Automatically removes glass bottles layer by layer from pallets
• Features height-adjustable lifting platform for different pallet sizes
• Controlled by PLC for smooth, synchronized movement
• Designed with safety enclosures to protect fragile glass containers

Can Depalletizer

• Automatically unloads cans layer by layer from pallets
• Operates with photoelectric sensors and PLC-based control
• Designed for high-speed, continuous operation in beverage lines
• Can handle empty or filled cans with minimal manual intervention

CO₂ Mixing Machine

• Mixes carbon dioxide with beverage base (water or syrup) under controlled pressure
• Equipped with precision flow meters for accurate CO₂ and liquid ratio control
• Uses a carbonation tank to ensure stable and uniform gas-liquid blending
• Commonly integrated in soda, beer, and sparkling drink production lines

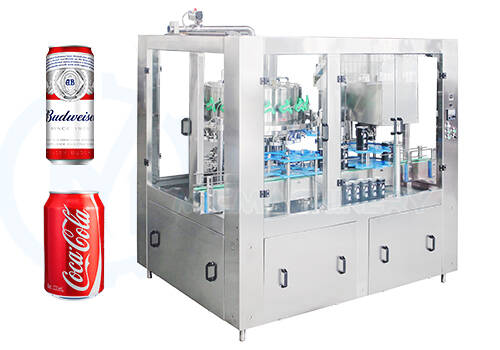

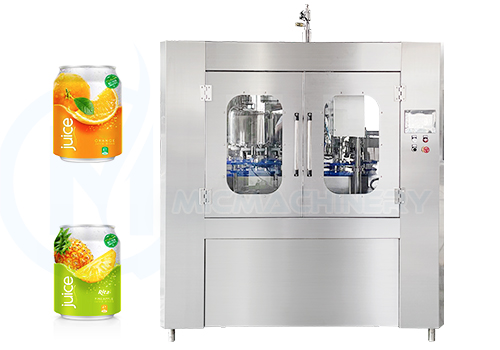

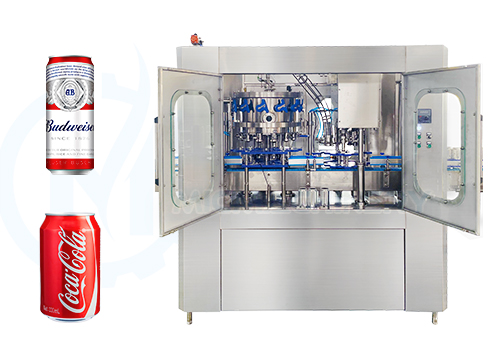

Drink Can Filling Machine

• Uses volumetric or isobaric filling systems to preserve flavor and carbonation
• Compatible with 250ml, 330ml, 500ml, and custom can formats
• Airtight, high-pressure sealing for freshness retention
• Constructed from food-grade stainless steel for easy cleaning

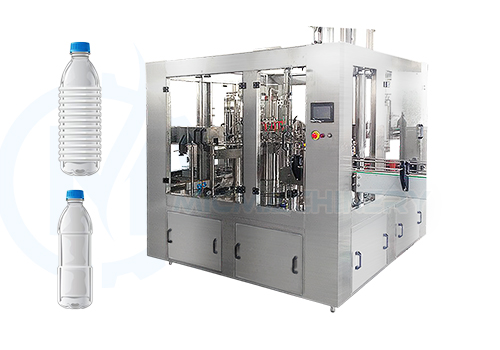

Drink Pet Bottle Filling Machine

• Easy-to-use control panel for seamless operation and monitoring.
• Fully automated filling, capping, and sealing with minimal manual intervention.
• Prevents overflows and waste with accurate liquid volume measurements.
• Can be configured to meet specific production requirements

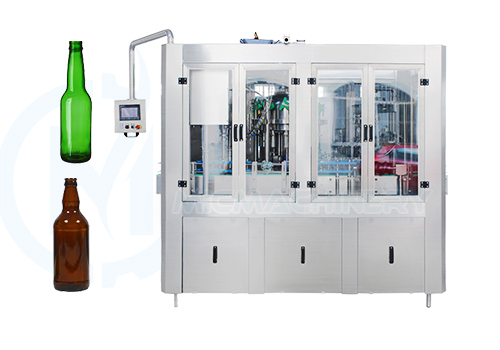

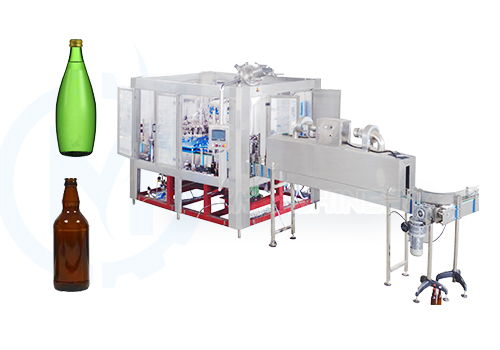

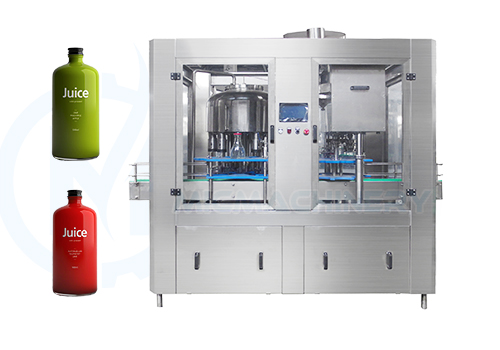

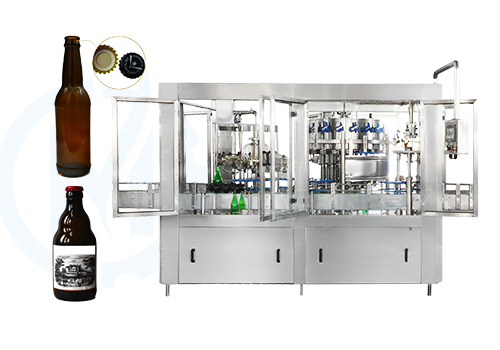

Drink Glass Bottle Filling Machine

• Integrates rinsing, filling, and capping in one rotary system
• Equipped with bottle neck-holding or bottom-support handling system
• Suitable for juice, water, soda, and alcoholic beverages in glass bottles

Warm Irrigation Machine

• Gently sprays warm water over filled bottles or cans to equalize internal pressure
• Prevents condensation on cold-filled containers before labeling
• Uses circulating warm water system with temperature control
• Equipped with adjustable spray nozzles for full surface coverage

Air Knife Dryer

• High speed fan: this equipment is equiped with a power, high strength roots blower, can produce a certain air knife effect.
• High quality materials: the whole machine except accessories are made of stainless steel.

Labeling Machine

• Labeling synchronized with conveyor speed for consistent placement
• Controlled by PLC and touchscreen for easy operation and quick adjustments
• Equipped with fault detection and auto-stop for safety and efficiency
• Compatible with flat, round, oval, and irregular containers

Shrink sleeve labeling machine

• Feeds shrink film from a roll and cuts it into individual sleeves
• Applies sleeves over bottles using a servo-controlled mandrel or drop system
• Uses pulling and feeding wheels to maintain label tension and alignment
• Compatible with round, square, and custom-shaped containers

Laser Batch Coding Machine

• Uses a focused laser beam to etch or mark codes directly onto product surfaces
• No ink or consumables required, ensuring clean and permanent coding
• Compatible with various packaging lines: bottles, pouches, cartons, etc.
• Supports dynamic data input for variable codes like batch numbers and dates

Wrap packing machine/Carton packing machine

• Products are pushed or dropped into the open carton by mechanical arms or pushers
• Equipped with sensors to detect product presence and carton position
• Synchronizes with upstream filling or labeling equipment
• Adjustable guides accommodate different carton sizes

Palletizer

• Stacks cartons, bags, or containers layer by layer onto pallets
• Uses robotic arms or layer-forming conveyors for positioning
• Includes pallet magazine and automatic pallet feeding system
• Equipped with sensors for precise alignment and layer control

Pallet wrapping machine

• Film carriage moves vertically to cover the entire height of the load
• Includes photoelectric sensors to detect load height automatically
• Offers options for top-sheet application or corner reinforcement
• Suitable for stabilizing products during transport and storage
