Filling Machine Problems and Solutions: Fill Level, Foam, Leakage and Capping

When a beverage filler produces rejects, the visible defect may appear several stations after its cause. An underfilled bottle can reflect a filling-valve problem, unstable product supply or excess foam. Leakage may come from a nozzle, container or closure. A useful troubleshooting routine records the symptom, locates where it first appears and compares affected containers by valve, capper head and production condition.

Start with a repeatable diagnosis

Collect rejected samples and the machine alarm history before changing settings. Note the product, container, batch, speed, time and whether the defect affects every container or repeats at a particular machine position. Separate startup behavior from steady production. If the pattern follows one filling valve or capping head, inspect that position first; if it appears across the machine, look at shared supply, pressure, temperature, container quality or setup.

Use the operating manual and site safety procedure before opening guards or working on pressurized, electrical or moving parts. After any adjustment, run a documented sample and confirm that the defect rate actually falls.

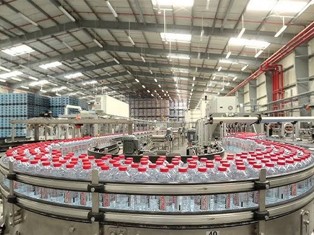

Filled bottles moving through a MIC beverage production line.

Uneven fill level or poor filling accuracy

First distinguish fill height from net contents. Bottle shape, temperature and foam can change the visible level without representing the same volume difference. Verify the measurement method, then compare samples from the same product and container format.

If one valve repeatedly underfills, inspect its flow path, seals, actuation and setup against the manual. If all positions drift together, check product supply, tank level or pressure, air ingress, sensors and recipe settings. An inline fill-level inspector can help map rejects back to individual valves; FILTEC's inspection guidance describes this diagnostic use.

Foaming and overflow at the filler

For carbonated beverages, compare product temperature and pressure at the filler with the approved recipe. Incomplete pressure equalization, abrupt pressure release or a change in product flow can release CO2 and produce foam. Krones describes the pressure-equalization step in counter-pressure filling. Check whether the problem follows a valve or appears after a line stop; those patterns point to different causes.

Still beverages can also foam when air is entrained or the filling stream agitates the product. Confirm the product and filling method before changing nozzle position or fill speed. Record the original settings so a test can be reversed if it does not help.

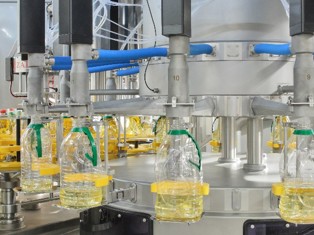

Close view of filling heads on equipment pictured by MIC.

Drips, leaks and wet containers

Find the first wet point. Liquid below a filling valve may indicate a seal, valve-closing or nozzle issue. A wet bottle neck can be splash or product carried out of the filler. Leakage that appears only after capping may point to a damaged container finish, mismatched closure or poor application. Locate the first leak before assigning it to a station.

Inspect the valve and product-contact seals against the equipment manual, and check whether the liquid appears during filling, transfer or after closing. Where leakage is linked to one head, isolate that head's setup and wear parts. For a line-wide issue, examine the container and closure supply as well as machine settings.

Bottle instability, jams and missed fills.

A bottle that tips or arrives late may leave the filling zone with a low fill or no fill. Compare guide rails, starwheels, conveyor timing, bottle dimensions and infeed spacing with the approved format setup. Check sensors for fouling or misalignment and examine whether downstream accumulation is pushing containers back toward the filler.

Container changeover is a common point of failure because the bottle body, base and neck must all match the handling parts. Run a short qualification sample after a format change, then inspect fills and closures at normal operating speed.

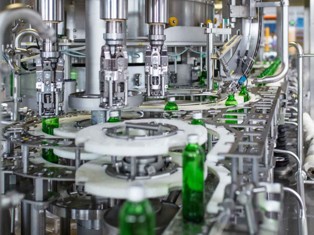

MIC filling equipment on a beverage line.

Loose, crooked or leaking caps

Separate a missing cap from a cap that is present but incorrectly applied. Inspect cap feed and orientation, the bottle finish, head alignment and the specified application setting. A crooked cap or damaged neck can leak even when the filler delivered the correct amount. HEUFT's closure-inspection examples show why presence alone is an incomplete check.

For cans, investigate seam defects with the can-end and seamer procedures, not bottle-capping settings. Use the closure supplier's limits and the equipment manual for torque or seam evaluation; a generic number cannot serve every package.

A practical escalation record

Keep a short record with the defect photo, first occurrence, affected valve or head, product and package, process conditions, alarm codes, action taken and sample result. This lets the equipment supplier or maintenance team work from evidence. MIC's beverage filling machine range covers several product and package types, so the machine model and application should accompany any support request.

FAQ

What should be checked first when every bottle is underfilled?

Confirm that the measurement method and container format are correct. Then check shared product supply, machine settings and upstream conditions before adjusting individual valves.

Why does one filling valve create more rejects than the others?

A repeating position pattern points toward that valve's setup, wear, actuation or local flow path. Map rejected containers to valve position and inspect the specific head using the manufacturer's procedure.

Can a capping problem look like a filling problem?

Yes. A bottle may leave the filler at the correct level, then leak through a misapplied cap or damaged finish. Check samples immediately after filling and again after closing to locate the first defect.

When should the line be stopped?

Follow the plant's safety and quality procedures. Stop and isolate equipment when a defect presents a safety hazard, package-integrity concern, uncontrolled leak or repeated out-of-specification product.

Final thoughts

Troubleshooting improves when the team records where a defect first appears and whether it tracks a single position or a shared operating condition. That evidence supports a targeted adjustment and a meaningful verification run.
