The 18-1 isobaric counter pressure filling system from “MIC” ensures a smooth, foam-free filling process—provided the beer remains below 40°F. Designed to maintain a standard 1.27 cm headspace as required by can manufacturers, it effectively accounts for product expansion and temperature fluctuations during transit. This system minimizes dissolved oxygen (DO) levels in the can, preserving beverage quality. Built with food-grade 304 stainless steel and finished with high-precision polishing, it offers superior hygiene and durability. A CIP connector can also be integrated based on customer needs, ensuring convenient and thorough internal cleaning.
MIC 18-1 Soda Filling Equipment (1500-2500CPH)
The MIC 18-1 Soda Filling Equipment offers high-speed, precise filling for soda beverages. With advanced technology and reliable performance, it ensures consistent quality and optimized production for large-scale operations.
Machine Is Suitable For
The soda filling equipment is designed to meet the demands of high-efficiency beverage production. It is ideal for medium to large-scale bottling and canning operations, offering flexibility in filling carbonated beverages like sodas, sparkling water, and soft drinks. With its advanced capabilities, the Soda production fill line is perfect for businesses looking to increase their production capacity while maintaining top-quality standards. This machine is suitable for various container types and sizes, including cans, bottles, and glass bottles, making it a versatile solution for different packaging needs.
|
|

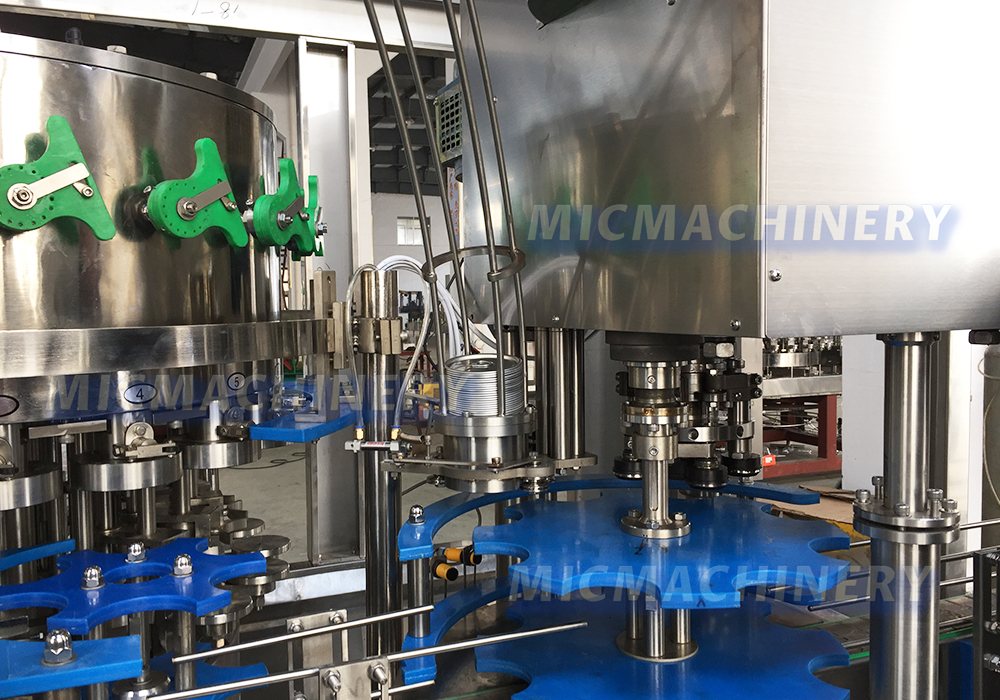

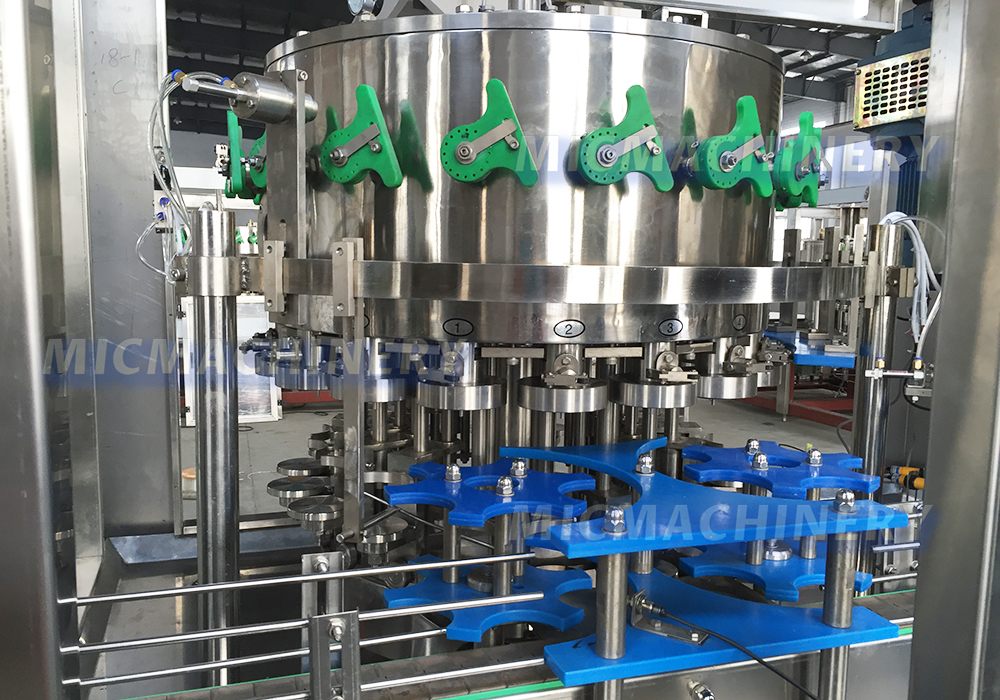

Isobaric pressure / counter pressure filling system
|
|

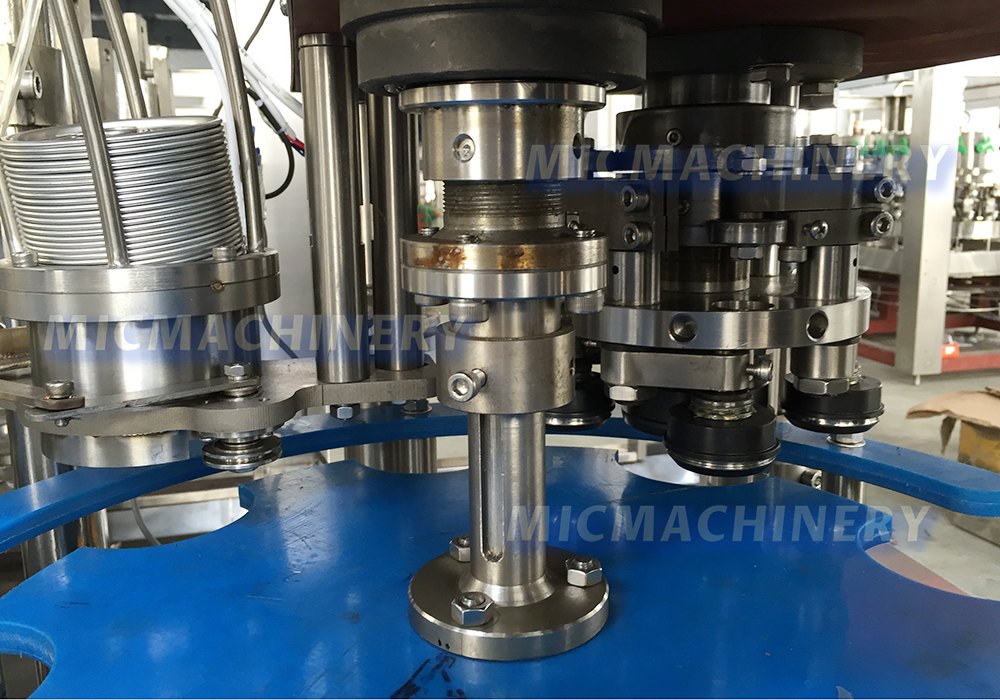

Can filling seaming machine lid feed system
The lid feed system in a can filling seaming machine is responsible for automatically supplying lids to the cans during the sealing process. It ensures a smooth and continuous flo
w of lids, preventing delays and maintaining production efficiency. The system typically uses a conveyor or vibratory feeder to align and position lids correctly before they are placed on the filled cans. This automated process reduces the risk of contamination, improves the consistency of the seal, and speeds up the overall canning operation. The lid feed system is essential for ensuring that each can is securely sealed, maintaining product quality and preventing leakage. |
|
Working Principle of Soda Filling Machine
The rotary soda filling machine utilizes a highly efficient, automated system to fill containers with soda or carbonated beverages. The filling process begins with containers being loaded onto a conveyor, where they are transferred to the filling station. Using pressure or gravity filling technology, the machine ensures precise filling to maintain carbonation levels and minimize spillage. The soda filling equipment works with multiple filling nozzles, allowing simultaneous filling of several containers, thus increasing throughput. Once the filling process is complete, the containers move to the capping station where caps are automatically applied. This fully automated process helps ensure a fast and accurate filling operation.
Advantages of Soda Filling Machine
The rotary soda filling machine offers numerous advantages that enhance production efficiency and quality:
1、High-Speed Production
The advanced design of the Soda production fill line enables quick and precise filling of large volumes of soda, ideal for high-demand production environments.
2、Precision and Quality Control
This soda filling equipment is engineered to maintain carbonation levels while ensuring precise fill volumes, guaranteeing consistent beverage quality across all containers.
3、Energy-Efficient
The machine is designed to optimize energy usage by reducing wastage during the filling process and minimizing operational costs, making it an eco-friendly solution for manufacturers.
4、Easy Integration
It seamlessly integrates into existing production lines, providing a scalable solution as production volumes grow.
5、Durability and Reliability
Built with robust materials, the soda filling equipment is designed for long-term use, ensuring consistent performance even in high-volume operations.
6、User-Friendly Interface
The intuitive control panel allows operators to easily adjust settings and monitor the entire filling process, ensuring smooth operation with minimal intervention.
Jiangsu Mic Machinery provides top-of-the-line soda filling equipment designed to meet the needs of modern beverage manufacturers. Our machines, including the rotary soda filling machine, are built for speed, precision, and reliability, offering manufacturers an efficient and cost-effective solution for their production lines.
Mic 18-1 Parameters
| Power | 1.5Kw |
| Filling heads | 18piece |
| Sealing heads | 1piece |
| Production capacity |
1000-2500CPH based on 330ml |
| Filling temperature | 0-4 ℃ |
| Filling pressure | Max 5bar/0.5Mpa |
| Can diameter range | Ф40-90MM |
| Can height | 92-168MM |
| Dimension |
1900*1300*1950mm |
| Weight | 2100Kg |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
|
12 |
Reducer |
Zhejiang Duoli China |
|
13 |
Sealing Motor |
Zhejiang Duoli China |
|
14 |
Barometer |
AirTAC Taiwan |
|
15 |
Bearing |
Harbin China |
