MIC 18-4 Oil Bottle Packing Machine (1800-2200BPH)
Introduction to MIC 18-4 Oil Bottle Filling Machine
Machine is Suitable For:
The MIC 18-4 oil bottle filling machine is perfect for filling edible oils, and other liquid products. With a filling capacity of 1800-2200BPH, it is designed for use in industries such as automotive, food, and beverage, as well as manufacturing sectors requiring high-volume bottling.
|
|
Plastic cap screwing system
In the plastic cap screwing system for plastic bottle oil filling, the motor drives the main shaft through a transmission device, enabling the turntable to rotate smoothly. Since the central gear remains fixed, the capping heads rotate as their gears engage with the stationary gear. During operation, caps are supplied automatically through the cap feeding chute and guide rail. Bottles arriving under the capping head will receive a cap, while no bottle means no cap is released. As the capping head moves downward under cam control, the cap is pressed and screwed tightly onto the bottle. Finally, the bottles are guided forward by the star wheel for smooth delivery. |
|
Volumetric type quantitative filling system

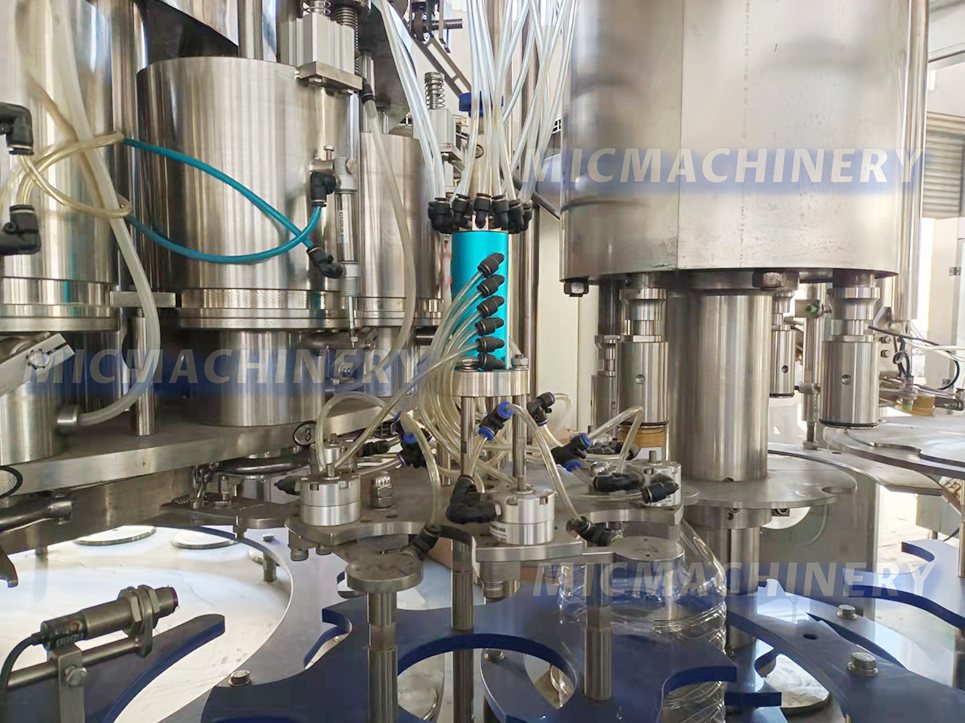

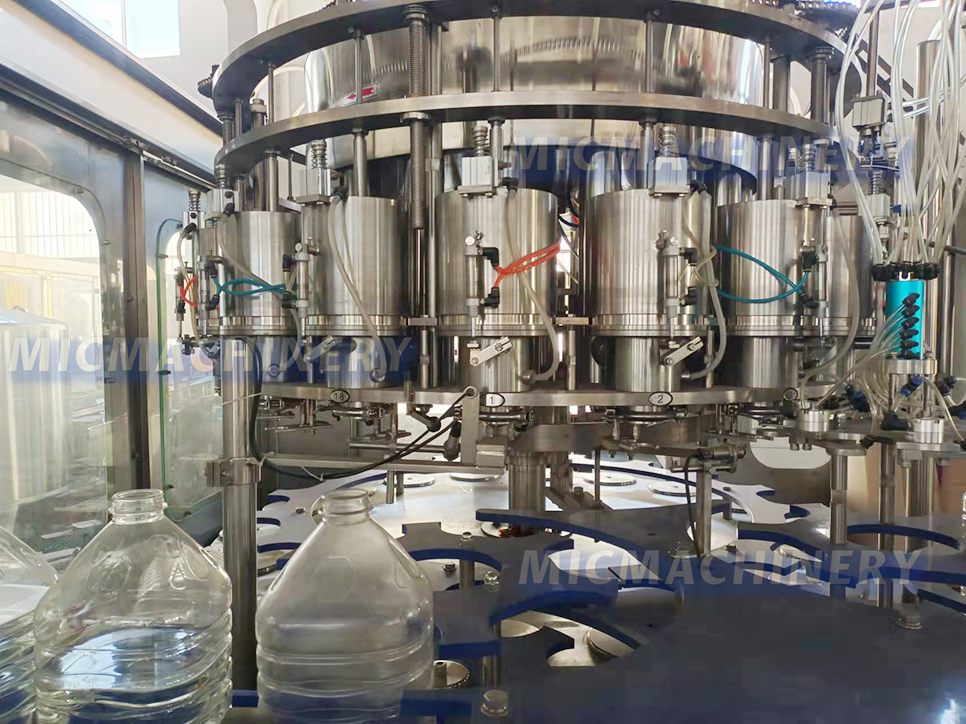

The volumetric type quantitative filling system for plastic bottle oil filling adopts a non-contact measuring method to ensure high accuracy and hygiene. When the measuring cup control valve opens, oil flows into the measuring cup based on the preset volume. Bottles are precisely positioned under the filling valves through the conveyor, screw, and star wheel. Once the required volume is reached, the time control system closes the measuring cup valve, guaranteeing consistent filling. To prevent dripping, a cylinder blows any residual oil from the valve outlet into the bottle, leaving a clean finish. The filled bottles are then smoothly transferred to the capping unit for sealing. |
|
Machine Features:
High-Speed Filling: The MIC 18-4 provides efficient filling at a rate of 1800-2200 bottles per hour, making it an ideal choice for large-scale production lines.
Volumetric Filling Precision: This oil bottle filling machine ensures accurate volume measurement for each oil filler bottle, reducing waste and optimizing material use.
Versatility: Designed to handle a wide range of bottle sizes, the machine provides flexibility in filling different oil filler bottles and accommodates various packaging needs.
Robust and Reliable: Built with high-quality stainless steel, this machine offers long-lasting durability and is resistant to wear and tear, ensuring consistent performance in demanding environments.
User-Friendly Operation: Featuring an intuitive control panel, the MIC 18-4 allows for easy setup and operation, reducing the need for specialized training and enabling smooth integration into your existing production line.
Minimal Maintenance: With its durable construction and streamlined design, the machine is easy to clean and maintain, reducing downtime and increasing production efficiency.
Machine Introduction:
The MIC 18-4 oil bottle filling machine from Jiangsu Mic Machinery is engineered for precision and high efficiency in oil packaging applications. Whether you're filling oil or other liquid products, this machine provides reliable, high-speed performance. It is designed with volumetric filling technology, ensuring that every bottle is filled with the correct amount of liquid, eliminating both underfilling and overfilling. The machine's versatility allows it to handle various bottle sizes and types, while its robust design guarantees durability in high-volume production settings.
Equipped with a user-friendly interface, the MIC 18-4 can be easily operated by your production team, reducing human error and enhancing operational efficiency. Built from premium stainless steel, the machine is also resistant to corrosion, making it suitable for food-grade and non-food-grade oils alike.
Conclusion
The MIC 18-4 oil bottle filling machine from Jiangsu Mic Machinery is the ideal solution for businesses looking for efficient, high-quality bottling systems. With its precision, speed, and ease of use, this machine helps you improve your production efficiency while maintaining high-quality standards. By choosing Jiangsu Mic Machinery, you invest in reliable, professional equipment that will support your business's growth and meet the demands of large-scale oil packaging operations.
|
Power |
1.5Kw |
|
Filling heads |
18heads |
|
Capping heads |
4heads |
|
Filling volume range |
3-5L |
|
Production capacity |
1800-2200BPH based on 5L |
|
Filling temperature |
Room temperature |
|
Bottle diameter range |
Ф80-180MM |
|
Bottle height |
180-380MM |
|
Air pressure |
0.6-0.8Mpa |
|
Air consumption |
0.8-1.0m³/min |
|
Dimension |
2570×2300×2650mmm |
|
Weight |
5000Kg |
|
Name |
Brand |
|
Touch screen |
Siemens (Germany) |
|
Buttons |
Schneider (France) |
|
AC Contactor |
Schneider (France) |
|
PLC |
Mitsubishi (Japan) / Siemens (Germany) |
|
Frequency changer |
Schneider (France) |
|
Breaker |
Schneider (France) |
|
Air cylinder |
AirTAC (China) / FESTO (Optional) |
|
Solenoid valve |
AirTAC (China) / FESTO (Optional) |
|
Relay |
Omron (Japan) / Schneider (France) |
|
photoelectric sensor |
Autonics (Korea) / Omron (Optional) |
|
Proximity switch |
Autonics / Omron (Optional) |
