MIC 24-24-6 Carbonated Bottling Machine (4000BPH)
Machine is Suitable For
The MIC 24-24-6 carbonated bottling machine is an advanced solution designed for bottling carbonated beverages such as soda, sparkling water, and flavored carbonated drinks. It is suitable for use in medium to large-scale production lines, ensuring efficiency and consistency across operations. Whether working with PET or glass bottles of various sizes, this machine delivers reliable performance tailored to the needs of the beverage industry.
|
|
|
|

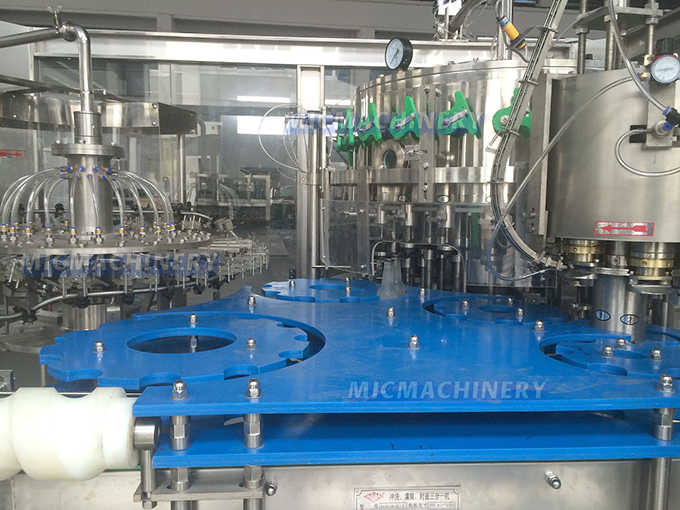

Chuck The brewery bottle filler Chuck securely holds bottles in place during the filling process, ensuring accurate positioning and preventing movement. This enhances filling precision and reduces the risk of spillage or contamination. |
 |
|
|

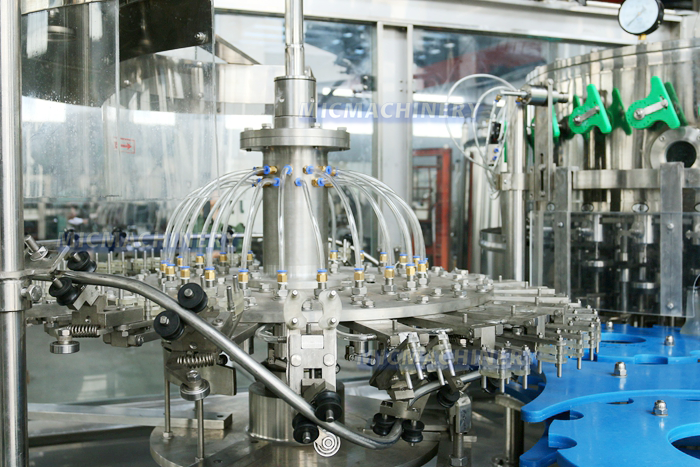

Washing Part The washing part of the beer bottle filler ensures bottles are thoroughly cleaned before filling. It uses high-pressure water and sanitizing solutions to remove debris and contaminants, ensuring a hygienic filling process. |
Working Principle of the Carbonated Filling Machine
This carbonated beverage fill equipment operates using an isobaric filling method to ensure the carbonation level is preserved throughout the process. The machine begins with bottle rinsing, where high-pressure water jets thoroughly clean each container.
In the filling stage, the system equalizes the pressure inside the bottle with the carbonation pressure of the beverage, minimizing foaming and preventing carbonation loss. The filling nozzles are designed for precision, delivering consistent and accurate fill levels.
Finally, the capping unit securely seals the bottles, ensuring product freshness and integrity. The machine's automated control system, managed through a user-friendly PLC and touch-screen interface, allows operators to monitor and adjust production parameters easily.
Advantages of the Carbonated Filling Machine
1、High Production Efficiency
With a capacity to process up to 18,000 bottles per hour, the MIC 24-24-6 carbonated drink filling machine is ideal for high-demand operations.
2、Versatility
Compatible with a variety of bottle sizes and materials, including glass and PET.
3、Precision Filling
The isobaric filling technology ensures accurate beverage levels and optimal carbonation retention.
4、Durable Construction
Built with premium stainless steel, this machine is corrosion-resistant and designed for long-term use in demanding production environments.
5、Energy Efficiency
Optimized for low energy consumption while maintaining high performance.
6、Hygienic Design
The machine features sanitary components and an easy-to-clean structure, ensuring compliance with food-grade standards.
7、Automation and Control
A PLC-controlled system and an intuitive touch-screen interface allow for precise monitoring and real-time adjustments.
8、Safety Assurance
Equipped with advanced safety mechanisms, including overload protection and emergency stop functions.
The MIC 24-24-6 carbonated bottling machine represents Jiangsu Mic Machinery’s commitment to providing high-quality, reliable, and efficient equipment for the beverage industry. Its state-of-the-art design and innovative features make it a trusted solution for manufacturers aiming to enhance productivity and ensure top-notch beverage quality.
|
Model |
MIC-24-24-6 |
|
Washing heads |
24pcs |
|
Filling heads |
24pcs |
|
Capping heads |
6pcs |
|
Volume |
0.1-1L Customizable |
|
Production capacity |
4000-5000bottle/hr |
|
Filling method |
Isobaric |
|
Power |
4.5kw 380V/50HZ(According to customer) |
|
Air pressure |
0.7Mpa |
|
Bottle height, bottle diameter |
180-300MM ￠50-90MM |
|
Wash bottle water pressure |
0.6~0.8 Mpa |
|
Weight |
3500Kg |
|
Dimension |
2200×1800×2550mm |
|
Filling speed |
4000-5000BPH |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
|
12 |
Reducer |
Zhejiang Duoli China |
|
13 |
Sealing Motor |
Zhejiang Duoli China |
|
14 |
Barometer |
AirTAC Taiwan |
|
15 |
Bearing |
Harbin China |
