MIC-24-24-6 Soda Filling and Capping Machine (3000-6000BPH)
MIC-24-24-6 Soda Filling and Capping Machine
Machine is Suitable For
The MIC-24-24-6 soda filling and capping machine is designed for high-efficiency soda production lines, particularly in industries where large volumes of carbonated beverages are produced. This automatic soda filler is highly suitable for filling and capping a variety of bottles, including plastic and glass containers, with soda, sparkling water, and other carbonated drinks. It’s perfect for factories and beverage production plants looking to streamline their operations and increase throughput while maintaining high-quality standards.
|
|
|
|
Chuck The brewery bottle filler Chuck securely holds bottles in place during the filling process, ensuring accurate positioning and preventing movement. This enhances filling precision and reduces the risk of spillage or contamination. |
 |
|
|

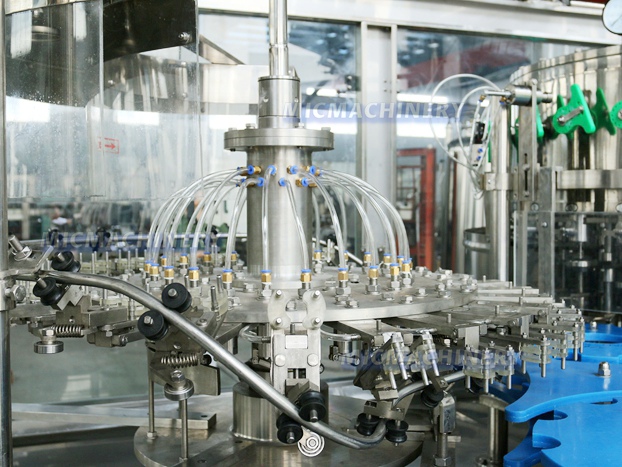

Washing Part The washing part of the beer bottle filler ensures bottles are thoroughly cleaned before filling. It uses high-pressure water and sanitizing solutions to remove debris and contaminants, ensuring a hygienic filling process. |
Working Principle of Soda Filling Machine
The working principle of the soda filling equipment relies on a combination of advanced technology to ensure accurate and consistent filling. The process begins with the automatic feeding of bottles into the filling machine, where the bottles are positioned under the filling nozzles. Using a high-precision filling system, the automatic soda filler then fills each bottle with soda at a constant level, ensuring uniformity across all containers. The machine uses pressure and volume control to handle the carbonation and prevent any loss of fizziness. After filling, the system automatically seals the bottles with caps, providing a secure closure and preparing the products for distribution. This seamless integration of filling and capping functions is designed for continuous, high-speed operations.
Advantages of Soda Filling Machine
The MIC-24-24-6 soda filling and capping machine offers several key advantages, making it an essential choice for modern beverage manufacturers:
1、High Efficiency
With 24 filling heads and 24 capping heads, this machine ensures a high output, capable of filling up to 24,000 bottles per hour.
2、Precision and Accuracy
Equipped with advanced sensors and controllers, the soda filling equipment guarantees precise filling and capping, minimizing product waste and ensuring consistency in every bottle.
3、Durability
Constructed with high-quality materials, the machine is designed to withstand the demands of continuous production, providing long-lasting performance and reducing maintenance costs.
4、Energy Efficiency
The automatic soda filler is engineered to operate with minimal energy consumption, offering an eco-friendly solution to your production needs.
5、Versatility
Capable of handling different bottle sizes and types, this machine is adaptable to a wide range of soda products, making it a versatile asset for any beverage manufacturer.
With these features, the MIC-24-24-6 soda filling and capping machine is the ideal choice for businesses looking to enhance their production capabilities while maintaining high levels of product quality.
|
Model |
MIC-24-24-6 |
|
Washing heads |
24pcs |
|
Filling heads |
24pcs |
|
Capping heads |
6pcs |
|
Volume |
0.1-1L Customizable |
|
Production capacity |
4000-5000bottle/hr |
|
Filling method |
Isobaric |
|
Power |
4.5kw 380V/50HZ(According to customer) |
|
Air pressure |
0.7Mpa |
|
Bottle height, bottle diameter |
180-300MM ￠50-90MM |
|
Wash bottle water pressure |
0.6~0.8 Mpa |
|
Weight |
3500Kg |
|
Dimension |
2200×1800×2550mm |
|
Filling speed |
4000-5000BPH |
|
1 |
Name |
Brand |
|
2 |
Push Button |
Schneider France |
|
3 |
Electromagnetic Contactor |
Schneider France |
|
4 |
Relays |
Omron Japan |
|
5 |
Frequency Converter |
Siemens |
|
6 |
Air Cylinder |
AirTAC Taiwan |
|
7 |
Electromagnetic Valve |
AirTAC Taiwan |
|
8 |
PLC Control System |
Siemens |
|
9 |
Touch Screen |
Siemens |
|
10 |
Photoelectric Switch |
Autonics |
|
11 |
Proximity Switch |
Autonics |
|
12 |
Reducer |
Zhejiang Duoli China |
|
13 |
Sealing Motor |
Zhejiang Duoli China |
|
14 |
Barometer |
AirTAC Taiwan |
|
15 |
Bearing |
Harbin China |
