MIC-X-R-15000A Blow Molding Machine For Sale
Blow Molding Machine for Sale: Functions, Prices, and Technical Overview
If you are looking for a high-efficiency bottle production solution, a blow molding machine for sale is an essential investment. Designed for producing plastic bottles of various shapes and sizes, these machines are widely used in the beverage, cosmetic, and chemical industries. Choosing the right plastic blow molding machine or PET blow molding machine can ensure consistent quality, high performance, and cost-effective production.
Function of the Plastic Bottle Blowing Machine
A plastic blow molding machine is designed to convert preforms into fully formed bottles. Preforms, which are small, tube-like plastic pieces, are heated and then inflated inside a mold using compressed air to achieve the desired bottle shape.
Modern PET blow molding machines often feature automated processes, including preform feeding, heating, stretching, blowing, and cooling. This automation enhances efficiency, reduces labor costs, and ensures uniform bottle quality. Advanced models may also include sensors to detect defects and prevent the production of substandard bottles.
Technical Principle
The working principle of a plastic blow molding machine relies on the blow molding process:
1. Preform Loading: Preforms are loaded into the machine either manually or via an automatic feeder.
2. Heating: Preforms are heated to the correct temperature for molding.
3. Stretching and Blowing: The heated preform is inserted into a mold. A stretch rod elongates the preform, and compressed air inflates it to form the final bottle.
4. Cooling: The mold cools the bottle to solidify its shape.
5. Ejection: Finished bottles are ejected for labeling, filling, or packaging.
This process ensures uniform wall thickness, optimal structural integrity, and minimal material waste.
Performance and Advantages
PET blow molding machines provide several advantages for modern bottle production:
• High Efficiency: Capable of producing hundreds to thousands of bottles per hour.
• Consistent Quality: Ensures uniform wall thickness and bottle shape, reducing defective rates.
• Energy Saving: Modern designs include energy-efficient heating and air compression systems.
• Flexibility: Supports different bottle sizes and designs without major adjustments.
• Automation: Reduces labor requirements and enables continuous operation.
Maintenance is also straightforward, and most machines are designed for durability with easy part replacement.
Applications
PET blow molding machines are widely used in:
• Beverages: Bottles for water, juice, and soft drinks.
• Cosmetics: Bottles for shampoos, lotions, and personal care products.
• Chemicals: Containers for detergents, cleaning agents, and other liquids.
Their flexibility to produce various bottle shapes and sizes makes them ideal for businesses of all scales.
|
|

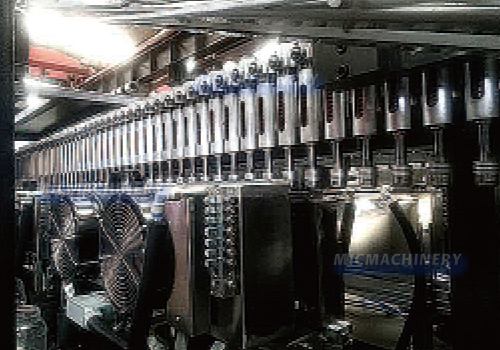

The heating box features a simple structure and easy operation, with lamps that are easy to replace and maintain. The shift hand is driven by a servo motor with a variable pitch design. |

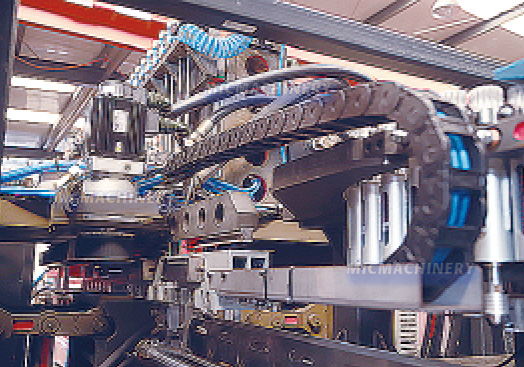

| The servo motor controls the pitch change to ensure high-speed operation and precise positioning. The frame uses a servo-driven linkage structure for opening and closing the mould and bottom mould. |
|
|
|
A high-speed, precision blowing valve set effectively improves output, while the human-machine interface operating system allows for simple and intuitive operation. |
| Model&Name | MIC-X-R-15000A |
| Overall Dimensions(mm) Length*Width*Height | Main machine: 7300*2100*3000 |
| Elevator: 3900*1300*3400 | |
| Weight | 10 ton |
| No. of Cavities | 10 cav. |
| Cavity Pitch | 80 mm |
| Max. Capacity | 0.8 litre |
| Heating Pitch | 50 mm |
| No. of Perform Holders | 182 PCS |
| Preform Neck (inner dia.) | 20~30 mm |
| Preform Height (max) | 150 mm |
| Bottle Inner Diameter (max) | 75 mm |
| Bottle Height (max) | 270 mm |
| No. of Heating Ovens | 6 unit |
| No. of Infrared Lamps | 48 pcs |
| Max. Heating Power | 60 kw |
| Specified Power Consumption | 55 kw |
| Voltage | 380V 50/60hz |
| Theoretical Production (Based on 150ml; Preform: 28g; Round Bottle) | 15000 pcs/h |
