Introduction to the 24-Heads Hot Melt Glue Labeling Machine
The hot melt glue labeling machine is a high-efficiency labeling system designed for industries requiring rapid and precise label application. With its 24-head configuration, this advanced equipment significantly boosts productivity while ensuring consistent and accurate labeling. Engineered for seamless operation, the hot melt labeling machine is ideal for beverage, food, and chemical industries, offering a reliable and cost-effective labeling solution.
|
|

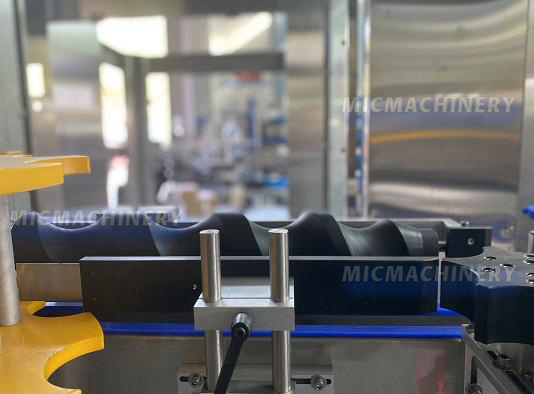

Bottle screw and bottle stop star wheel
The bottle screw and bottle stop star wheel are key components in the infeed and positioning system of a Hot Melt Glue Labeling Machine. The bottle screw (also called infeed worm) guides bottles into the labeling station at a controlled pace, ensuring proper spacing and orientation. As bottles approach the labeling carousel, the bottle stop star wheel accurately positions each container into a fixed labeling point, aligning it precisely for label application. Together, these mechanisms provide smooth bottle handling, reduce collisions or misfeeds, and maintain high-speed labeling accuracy for round, square, or shaped bottles. |
|

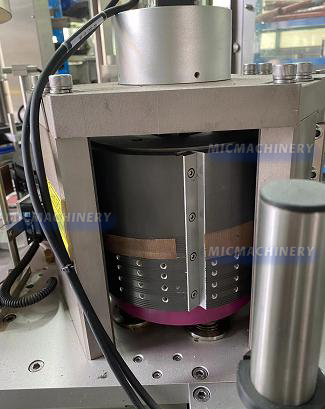

Knife drum
The knife drum in a Hot Melt Glue Labeling Machine is a precision-cutting component responsible for cleanly slicing labels from the roll-fed film. As the label material passes through the machine, the knife drum works in perfect synchronization with the vacuum drum and servo system to ensure accurate and consistent cuts at high speeds. Its sharp rotary blades deliver smooth edges without damaging the label surface. Designed for durability and low maintenance, the knife drum is essential for maintaining label length consistency and overall labeling precision. |
|
|
|

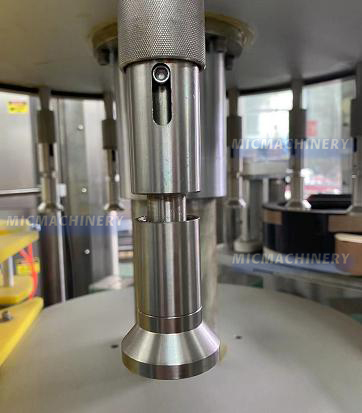

High speed pressure head
The knife drum in a Hot Melt Glue Labeling Machine is a precision-cutting component responsible for cleanly slicing labels from the roll-fed film. As the label material passes through the machine, the knife drum works in perfect synchronization with the vacuum drum and servo system to ensure accurate and consistent cuts at high speeds. Its sharp rotary blades deliver smooth edges without damaging the label surface. Designed for durability and low maintenance, the knife drum is essential for maintaining label length consistency and overall labeling precision. |
|

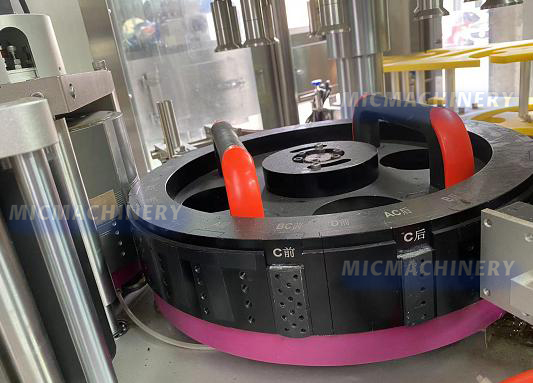

Standard drum
The standard drum in a Hot Melt Glue Labeling Machine is a central rotating component responsible for receiving labels after cutting and transferring them to the container surface. Coated with vacuum ports or gripping mechanisms, the standard drum securely holds each label in the correct position and guides it through the gluing and application stages. It operates in precise synchronization with the knife drum, glue roller, and bottle carousel to ensure accurate label placement. Built for high-speed operation, the standard drum is engineered for stability, smooth motion, and consistent performance across various bottle types and label sizes. |
|
Performance and Features of the Hot Melt Glue Labeling Machine
The hot melt glue labeling machine operates at high speeds, applying labels with exceptional precision. This system utilizes hot melt labeling machine technology to ensure firm adhesion, reducing label waste and maximizing production efficiency. The machine is equipped to handle a variety of label materials, including OPP, BOPP, and paper labels, making it a versatile solution for diverse packaging needs.
Key Features:
-
24-head high-speed labeling system for continuous and efficient operation.
-
Advanced glue application technology that ensures strong label adhesion while minimizing glue usage.
-
Versatile compatibility with different label materials using the hot melt labeling machine, including OPP, BOPP, and shrink labels.
-
Robust and durable construction, designed for long-term industrial use with minimal maintenance.
-
User-friendly control system, allowing easy adjustments and precise label placement.
Application of the OPP Labeling Machine
The OPP labeling machine is widely used in beverage, food, and daily chemical industries. It is especially suitable for labeling plastic and glass bottles in high-production environments. By integrating a hot melt glue labeling machine, manufacturers can achieve seamless and cost-effective labeling solutions, improving branding consistency and production efficiency.
Conclusion
The 24-head hot melt glue labeling machine is an essential asset for high-speed, large-scale labeling operations. With its advanced hot melt labeling machine technology and compatibility with the OPP labeling machine, this system ensures superior performance, durability, and efficiency. Enhance your production capabilities with this state-of-the-art labeling solution, designed to deliver precision and reliability in every application.
1.Equipment composition
1.1 Host conveying mechanism: 2200W AC motor (with reducer), frequency converter speed regulation;
1.2 Conveyor mechanism: 750W AC motor (with reducer), frequency converter speed regulation; Industrial Nylon Chain Plate Conveyor Belt
1.3 Bottle sorting mechanism: Industrial screw bottle sorting mechanism
1.4 Bottle feeding mechanism: Combined with screw type bottle sorting mechanism and star wheel positioning feeding mechanism, ensuring the accuracy and stability of feeding
1.5 Positioning mechanism: mechanical pre positioning; Using cam mechanism trajectory for flattening bottle positioning and labeling
1.6 Labeling mechanism: The rotating turntable drives the bottle and labels it during the rotation process
1.7 Marking mechanism: Precision servo OPP label film marking system (driven by high-speed servo motor)
1.8 Pressure marking mechanism: professional arc brush component
1.9 Bottle guide mechanism: profile guide rail with dual coordinate adjustment
1.10 Adhesive supply system: dedicated hot melt adhesive supply system, ensuring the accuracy and uniformity of adhesive application
2. Equipment safety protection section
21 Safety protection: Close the protective door when the equipment is running to prevent injury to the operator
2.2 Missing label alarm: Set an alarm prompt when the label will be used up to remind the operator to prepare for label replacement
2.3 Bottle shortage alarm: When a bottle shortage occurs, the equipment will shut down and sound an alarm; Automatically resume production when there are bottles available, facilitating online production
2.4 Leakage alarm: beneficial for controlling the quality of labeling
2.5 Air pressure detection: When the air pressure does not meet the production requirements of the equipment, the equipment will be shut down for protection to prevent the production of defective products
2.6 Vacuum testing: When the vacuum degree does not meet the production requirements of the equipment, the equipment is shut down for protection to prevent the production of defective products
2.7 Temperature detection: When the temperature of the hot melt adhesive does not meet the production requirements of the equipment, the equipment will be shut down for protection to prevent the production of defective products
3. Working principle of labeling
This hot melt adhesive OPP labeling machine is a new type of rotating and continuous operation labeling machine; The equipment can automatically adjust the transmission of the container's inlet and outlet; The containers transported by the conveyor belt are separated by bottle separating screws at a certain distance according to the spacing of the star wheels. Then, the imported star wheels transport the containers to the container turntable. After the containers are fixed by the bottle pressing mechanism and the mold seat of the containers, they begin to rotate at a certain speed; Mechanical pre positioning during product rotation process; And locate and label according to the institutional trajectory.
When the container reaches the electric eye detection position, the computer host controls the label feeding system to feed the label. After completing a feeding action, the high-speed cutter cuts off a label; Due to the use of Schneider high-speed servo motors, the accuracy and stability of high-speed label feeding and cutting are ensured.
Cut off labels are fed into the gluing system; In this section, the system applies glue to the front and back edges of the label, which minimizes the consumption of hot melt adhesive.
When the adhesive coated label is rotated to the labeling position, the label can accurately and effectively adhere to the container. Due to the rotating state of the container during the label transfer process, the label can be smoothly and tightly attached to the container. The adhesive strip at the end of the glue application can form a good label overlap seal, completing a labeling process.
The entire process is as follows: pre positioning of the bottle, cutting of labels, gluing, labeling, and pressing of labels are completed
