Introduction to the 12-Head Hot Glue Labeling Machine
Jiangsu Mic Machinery introduces the hot glue labeling machine, an advanced, high-performance labeling solution designed for high-speed production lines. With 12 heads, this system is built to apply labels quickly and efficiently across a range of container types, including bottles, jars, and cans. The hot melt glue labeling machine technology ensures that labels are applied securely, providing exceptional adhesion and durability. This machine is perfect for industries such as beverages, pharmaceuticals, and food packaging, where precision and efficiency are critical.
The hot melt labeling machine utilizes hot melt adhesive to apply labels, ensuring strong, lasting adhesion. This feature is particularly beneficial for businesses looking to achieve professional, tamper-proof labeling on their products. The 12-head design allows for high throughput, enabling businesses to label large volumes of products in a short period, improving production efficiency.
 |
Mechanical part
Host conveying mechanism: 2200W ACmotor (with reducer), frequency converter for speed regulation; Conveying mechanism: 750W AC motor (with reducer), frequency converter for speed regulation; industrial nylon chain plate conveyor belt Bottle feeding mechanism: Cooperate with star wheel positioning feeding mechanism to ensure the accuracy and stability of feeding Positioning mechanism: mechanical pre-positioning; use cam mechanism track for flattening bottle positioning and labeling Labeling mechanism: The rotating turntable drives the bottle, and the labeling is carried out during the rotation Feeding mechanism: high-speed servo OPP label film feeding system (driven by high-speed servo motor) Pressure mark mechanism: professional arc brush assembly Bottle guide mechanism: profile guide rail with dual coordinate adjustment Glue supply system: special hot melt glue supply system to ensure the accuracy and uniformity of gluing |
|
|
Equipment safety protection section
Safety protection: when the equipment is running, close the protective door to prevent injury to the operator Missing label alarm: set the alarm when the label will run out to remind the operator to prepare to replace the label Bottle shortage alarm: when there is a shortage of bottles, the equipment will stop and alarm; when there are bottles, it will automatically resume production, which is convenient for on-line production Missing sticker alarm: Conducive to labeling quality control Air pressure detection: When the air pressure does not meet the production requirements of the equipment, the equipment will be shut down to prevent the production of defective products. Vacuum detection: When the vacuum degree does not meet the production requirements of the equipment, the equipment will be shut down to prevent the generation of defective products Temperature detection: When the temperature of the hot melt adhesive fails to meet the production requirements of the equipment, the equipment will be shut down to prevent the generation of defective products. |
|
 |
|
|
|
How Labeling Works

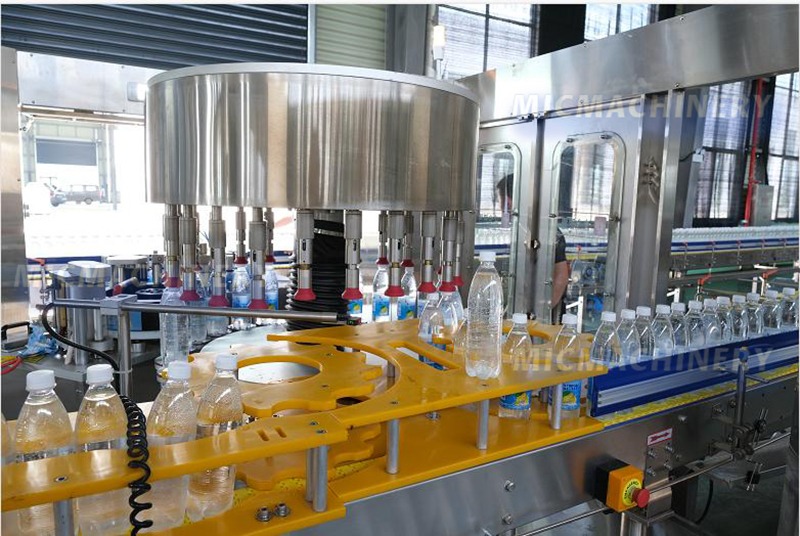

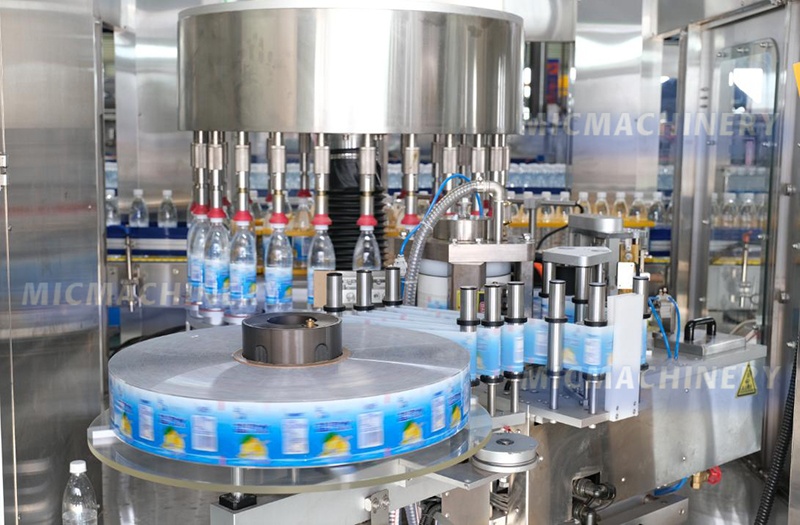

Thecontainers are separated by star wheels After a certain distance, the star wheel transfers the container to the turntable. After the container is fixed by the bottle pressing mechanism and the mold base of the container, the container starts to rotate at a certain speed; during the product rotation process, it is mechanically pre-positioned; and Positioning and labeling according to the trajectory of the organization When the container reaches the detection position of the electric eye, the computer host controls the label feeding system to send the label. When a label feeding action is completed, the high-speed cutter cuts off a label; use Inovancehigh-speed servo motor, it can ensure high-speed label feeding and cutting. The cut labels are fed into the gluing system; in this part, the system glues the two parts of the label's leading and trailing edges. This gluing method minimizes the consumption of hot melt adhesive. The glued label is accurately and efficiently applied to the container when it is transferred to the labeling position. Since the container is in a rotating state during the conveying process of the label, the label can be smoothly and tightly adhered to the container. |
Description of the 12-Head Hot Glue Labeling Machine
The hot glue labeling machine is designed for high-speed, high-precision labeling. Its 12-head configuration allows for simultaneous application of labels to multiple containers, significantly increasing labeling efficiency and throughput. The hot melt glue labeling machine functionality ensures that each label is applied with the correct amount of adhesive, providing a secure bond to the container.
The hot melt labeling machine feature uses hot melt glue to ensure that labels adhere firmly, providing excellent durability and tamper-evident qualities. This makes the system ideal for industries where product integrity and label adhesion are paramount. The 12 heads provide consistent labeling on a variety of container types and sizes, offering excellent flexibility for businesses with diverse packaging needs.
The hot glue labeling machine is built for high-speed production, allowing businesses to label large quantities of products quickly while maintaining the quality and precision of each label application. It is designed to be easy to operate, with a user-friendly interface that allows for fast setup and simple adjustments.
Key Features:
-
High-speed labeling with the hot glue labeling machine, allowing for fast and efficient label application.
-
12-head design for high-volume labeling, increasing production throughput.
-
Precise adhesive application with the hot melt glue labeling machine for strong and durable label adhesion.
-
Versatile functionality to label a wide variety of container types and sizes.
-
User-friendly interface for easy operation and quick setup.
Conclusion
Jiangsu Mic Machinery’s hot glue labeling machine with 12 heads provides a reliable, high-speed solution for businesses requiring efficient, precise labeling. Whether you need a hot melt glue labeling machine for secure adhesion or a hot melt labeling machine for high-volume production, our system guarantees superior performance and quality. Enhance your production line with our advanced labeling technology today!
|
Total power |
Three-phase 380V 50 Hz 8KW |
|
Total power |
Three-phase 380V 50 Hz ,8KW |
|
Speed adjustment method |
stepless speed regulation |
|
Maximum labeling speed |
1.5L---12000bph；3L---6000bph |
|
Labeling accuracy |
±1mm |
|
Label width (height) |
150mm (standard width, the width can be increased according to the actual product size) |
|
Label maximum length |
500mm |
|
Outer diameter of label |
600 mm |
|
Diameter of paper core |
152mm |
|
Labeling glue |
hot melt glue, only glue on both ends of the label |
|
Glue temperature |
120～160℃ |
|
Label type |
OPP film label, paper-plastic composite film label, paper label |
|
Labeled product type |
round bottle(Square bottles can be customized) |
|
Overall weight |
About3000 Kg |
|
NO. |
NAME |
BRAND |
QTY |
|
1 |
7inch Touch Screen |
Inovance |
1 |
|
2 |
Motion controller |
Inovance |
1 |
|
3 |
Frequency converters |
Inovance |
4 |
|
4 |
Servo motor |
Inovance |
1 |
|
5 |
Air switch |
Schneider |
1 |
|
6 |
Breakers |
Schneider |
3 |
|
7 |
Relays |
Schneider |
6 |
|
8 |
Emergency stop button |
Schneider |
1 |
|
9 |
Gluing, missing glue, label measuring photoelectric |
Panasonic |
3 |
|
10 |
Lack of bottles, blocked bottles, bottle measuring photoelectric |
Panasonic |
4 |
|
11 |
Lack of label, label loose roll photoelectric |
Panasonic |
2 |
|
12 |
Solid state relays |
MGR |
3 |
|
13 |
Proximity switch |
Autonics |
3 |
