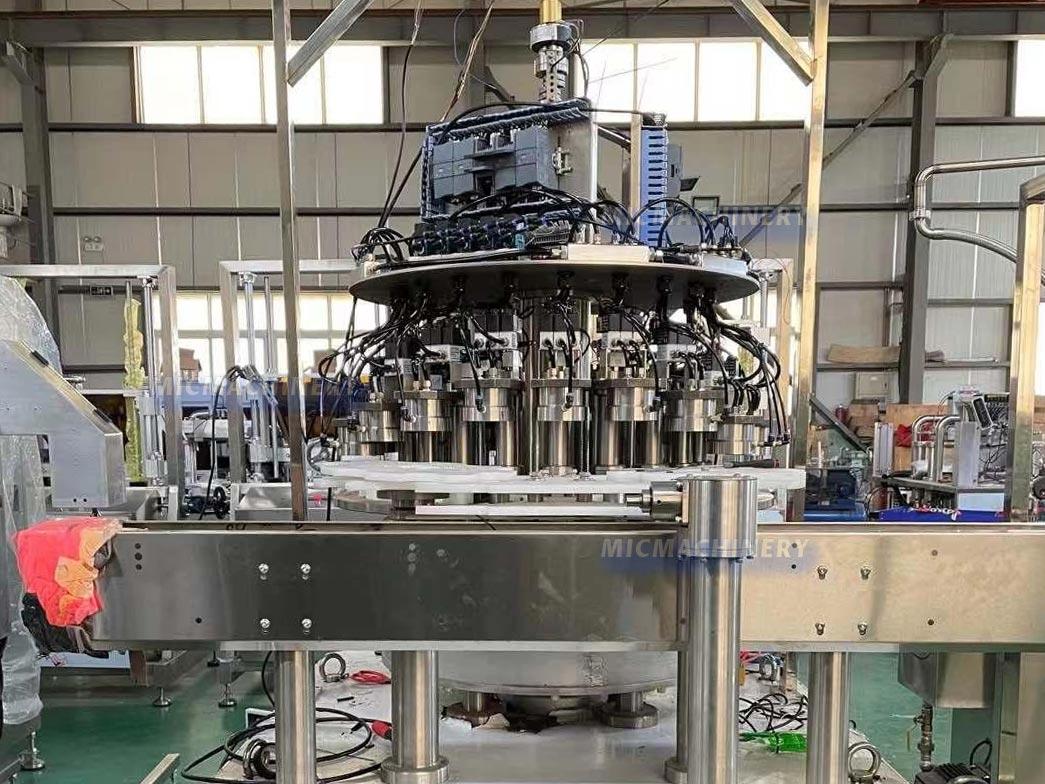

Negative Pressure Leak Detector
Performance Parameters
1. Speed: Standard 20-head machine detects 200 bottles per minute with an accuracy greater than 99.99%. (Higher detection accuracy requires slower speed; smaller leaks need more time to accumulate vacuum pressure difference)
2. Maximum Line Speed: 0-600 bottles per minute. The number of detection heads can be customized based on customer speed requirements; more heads mean faster speed.
3. Sensor Accuracy: 0.005 kPa
4. Detection Repetition Accuracy: 0.5 kPa
5. Weight: 800 KG
6. Container Specifications: 1ml—5000ml
7. Defective Product Ejection Accuracy: 99.99%
8. Temperature: 0-50°C
9. Humidity: 10%-80%
10. Voltage: 380V/50HZ
11. Power: 3KW
Functions
• Vacuum leak detection, sealing leakage detection
• Cap sealing detection
Applicable Objects
• Beverage bottles (PET, PE), chemical bottles, various glass bottles, pharmaceutical bottles, etc.
Applicable Industries
• Beverage, pharmaceuticals, chemicals, oils, etc.
Detection Principle

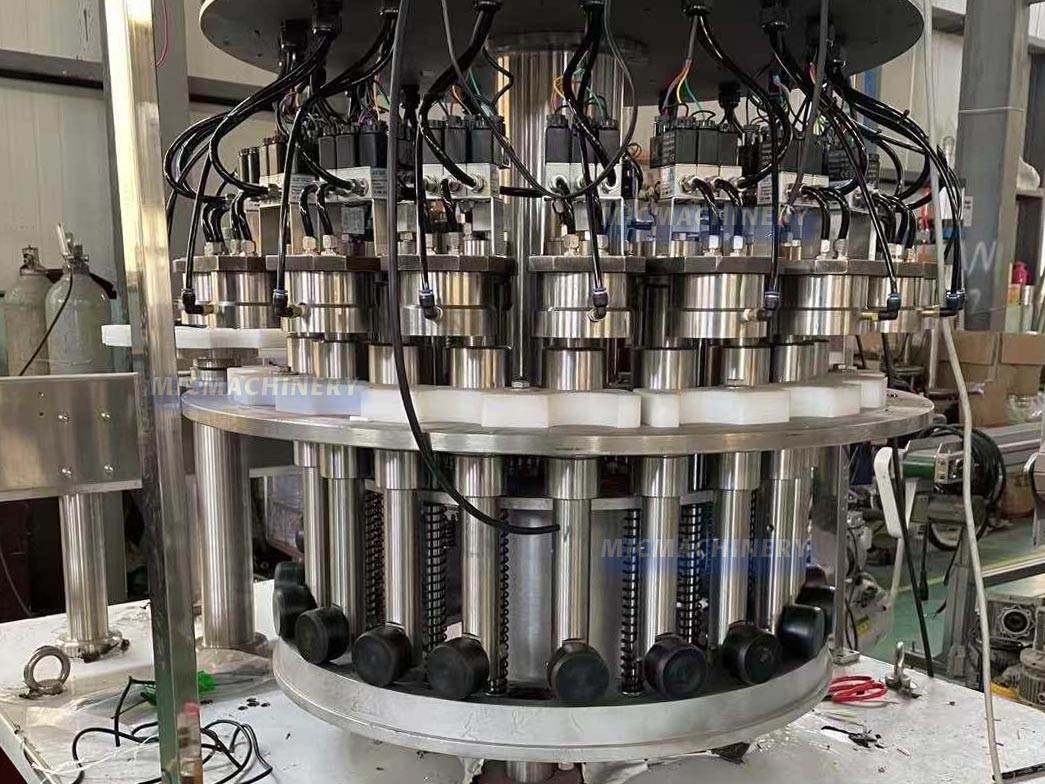

During detection, the rotating structure moves the container to the detection station. After positioning, a sealing device that matches the container seals it. Once sealed, a vacuum test is performed. The vacuum curve inside the sealed container is continuously monitored for changes. Containers with normal vacuum sealing and abnormal vacuum curves show clear differences. The threshold for defective products can be set via the touchscreen to achieve controlled detection and removal of defective products.
Depending on the container, the vacuum pressure difference of leaking containers ranges from 5-30 kPa. The detection repetition accuracy of 0.5 kPa easily detects defective products.
| Item | Specification |
| Speed | Standard machine with 20 heads detects 200 bottles/min, accuracy > 99.99%. (Higher detection accuracy requires slower speed, small leak detection needs more time to accumulate vacuum pressure difference.) |
| Maximum Line Speed | 0-600 bottles/min. Detection head quantity can be customized based on customer speed requirements, more heads result in faster speed. |
| Sensor Accuracy | 0.005 kPa |
| Detection Repeatability | 0.5 kPa |
| Weight | 800 KG |
| Container Specifications | 1ml—5000ml |
| Defective Product Ejection Accuracy | 99.99% |
| Temperature | 0-50°C |
| Humidity | 10%-80% |
| Voltage | 380V/50HZ |
| Power | 3KW |
